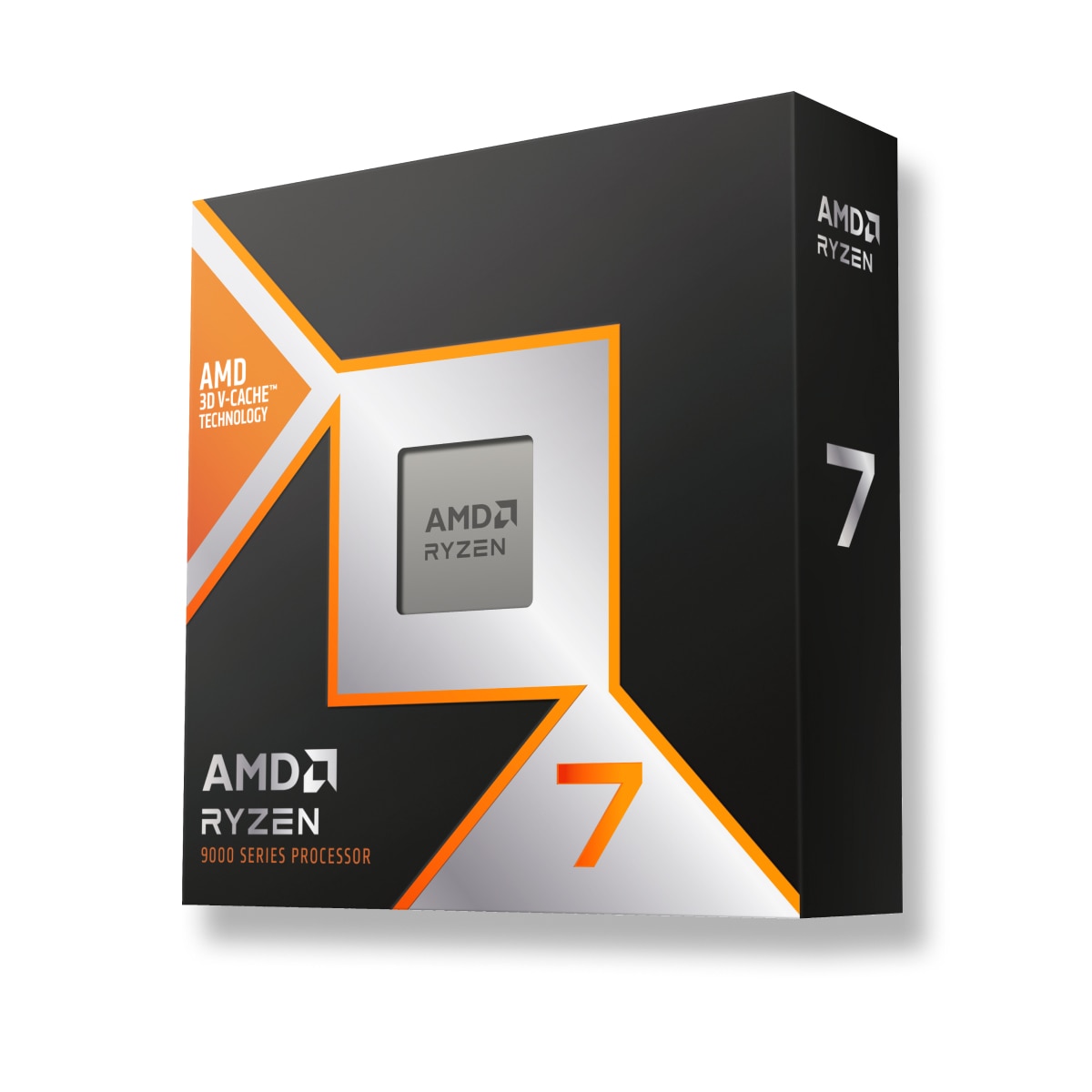

AMD Ryzen 7 9800X3D — Specifications and Blender benchmarks

规格基准同义词

规格

技术数据

处理器的生成和系列

系列
Ryzen
Form Factor
Desktops / Boxed Processor
命名
AMD Ryzen 7 9800X3D
分段
Desktop
Series
Ryzen 9000 Series

CPU内核和基本频率

Base Frequency
4.7 GHz
CPU核数
8
CPU线程
16
Max. Boost Clock
5.2 GHz
超频
是
Turbo Frequency (1 Core)
5.2 GHz

内部图形

GPU Frequency
2200 MHz
GPU名称
AMD Radeon Graphics
Graphics Cores
2

内存和PCIe

记忆通道
2
存储器类型
DDR5
PCIe
PCIe 5.0

能源消耗

Default TDP
120 W
Maximum Operating Temperature
95 °C
TDP (PL1 / PBP, legacy combined label)
120 W

技术细节

建筑学
Zen 5
Codename
Granite Ridge AM5
I/O die process
TSMC 6nm FinFET
L2-Cache
8 MB
L2-Cache
96 MB
发布日期
2024-11-07
插座
AM5
技术过程
TSMC 4nm FinFET

所有排名中的位置

共同立场 AMD Ryzen 7 9800X3D 在流行的基准测试中的CPU，用于与其他型号进行比较.

No data

基准

性能测试 CPU

Published results: 15

Blender Cycles

Each row uses one Blender version, operating system and compute backend.

Test and settings	AMD Ryzen 7 9800X3D
Blender 4.0.0 / CPU / Windows	333.805259 samples/min Submissions: 5
Blender 4.2.0 / CPU / Windows	323.517057 samples/min Submissions: 160
Blender 4.3.0 / CPU / Linux	405.562455 samples/min Submissions: 33
Blender 4.3.0 / CPU / Windows	320.757236 samples/min Submissions: 596
Blender 4.4.0 / CPU / Linux	377.766613 samples/min Submissions: 31
Blender 4.4.0 / CPU / Windows	320.502075 samples/min Submissions: 444
Blender 4.5.0 / CPU / Linux	391.167316 samples/min Submissions: 95
Blender 4.5.0 / CPU / Windows	333.029807 samples/min Submissions: 989
Blender 5.0.0 / CPU / Windows	325.661573 samples/min Submissions: 24
Blender 5.1.0 / CPU / Linux	280.833242 samples/min Submissions: 11
Blender 5.1.0 / CPU / Windows	367.535688 samples/min Submissions: 48
Blender 5.1.1 / CPU / Linux	395.565005 samples/min Submissions: 25

More tests: 3

Test and settings	AMD Ryzen 7 9800X3D
Blender 5.1.1 / CPU / Windows	370.912589 samples/min Submissions: 163
Blender 5.2.0 / CPU / Linux	385.190925 samples/min Submissions: 31
Blender 5.2.0 / CPU / Windows	366.507078 samples/min Submissions: 147

Results with primary test sources

Published measurements are separate from the archived index. Incomplete conditions and unknown run counts do not support ranking positions or calculated performance differences.

Test	Result	Reported conditions
Cinebench R15 / multi-core	3647 points
Cinebench R15 / single-core	328 points
Cinebench R20 / multi-core	9057 points
Cinebench R20 / single-core	818 points
Cinebench R23 / multi-core	23230 points
Cinebench R23 / single-core	2080 points

Individual system tests

Results were obtained on the reported systems. Test versions and settings remain separate; incomplete conditions do not support calculated model performance differences.

RandomX / XMRig 6.26.0 / 1M / 16 threads / windows

Result	Reported conditions
11708.093805 H/s	RandomX / XMRig 6.26.0 / 1M / 16 threads / windows System RAM: 32 GB OS: Windows NT 10.0 Motherboard: Gigabyte Technology Co., Ltd. / B850M GAMING X WIFI6E Duration: 85.411 s User-submitted run; tuning and power settings are incomplete.
