ASUS Dual GeForce RTX 2080 OC Evo
Wybierz kartę graficzną 2
User rating
star star star star star
Wydany
Q3/2018
ASUS Dual GeForce RTX 2080 OC Evo

Karta graficzna ASUS Dual GeForce RTX 2080 OC Evo, specyfikacje i wzorce

1002 miejsce w rankingu ogólnym Karty graficzne (GPU)!
Szczegółowy przegląd karty wideo ASUS Dual GeForce RTX 2080 OC Evo, której data produkcji rozpoczęła się Q3/2018. Przedstawione są tutaj wszystkie specyfikacje techniczne, a także wyniki wydajności w postaci szacunków z nowoczesnych benchmarków. Początkowa częstotliwość zegara 1.515 GHz. Karta wideo obsługuje GDDR6 i posiada na pokładzie pamięć wideo 8 GB. TDP wynosi 215 W. Zalecamy porównanie GPU z innymi modelami na naszej stronie internetowej w celu określenia najlepszej wydajności.

Specyfikacje

Dane techniczne
GPU
  • Na podstawie
    NVIDIA GeForce RTX 2080
  • Execution Units
    46
  • Układ GPU
    TU104
  • Jednostki wyjściowe renderingu
    64
  • Shader
    2944
  • Jednostki tekstury
    184
Pamięć
  • Memory Bandwidth
    448 GB/s
  • Memory Bus
    256 bit
  • Rozmiar pamięci
    8 GB
  • Memory Speed (legacy frequency label)
    1750 MHz
  • Typ pamięci
    GDDR6
Częstotliwość zegara
  • Częstotliwość podstawowa
    1515 MHz
  • Maksymalna częstotliwość
    1830 MHz + 7%
  • Game Clock
    1800 MHz
  • Overclocking
    Tak
Zużycie energii
  • Maximum Junction Temperature
    89 °C
  • TDP
    215 W
  • TDP (up)
    250 W+ 5 %
Chłodzenie
  • Cooler-Type
    Air cooling
  • Fan-Type
    Axial
  • Wentylator 1
    2 x 90 mm
  • Wentylator 2
    —
  • Noise (Idle)
    34 dB
  • Noise (Load)
    42 dB
Łączność
  • DisplayPort Ports
    3 × DisplayPort 1.4a
  • Porty DVI
    —
  • HDCP Version
    2.2
  • Porty HDMI
    1 × HDMI 2.0b
  • Max. Wyświetlacze
    4
  • PCIe Interface
    PCIe 3.0 x16
  • Power Connectors
    1 x 6-Pin, 1 x 8-Pin
  • USB-C Ports
    1 × USB-C
  • VGA Ports
    —
Zestaw funkcji
  • DirectX
    12_2
  • DLSS / FSR
    Tak
  • LED
    No LED lighting
  • Maks. rozdzielczość
    7680 × 4320
  • Raytracing
    Tak
Obsługiwane kodeki wideo
  • AV1
    Nie
  • h264
    Decode / Encode
  • h265 / HEVC
    Decode / Encode
  • VP8
    Decode
  • VP9
    Decode
Wymiary
  • Wysokość
    118 mm
  • Długość
    267 mm
  • Slot Size
    3 PCIe-Slots
  • Weight
    —
  • Width
    58 mm
Dane dodatkowe
  • specyfikacja
    data sheet
  • Launch Price (historical)
    749 $
  • Part Number
    DUAL-RTX2080-O8G-EVO
  • Process Technology
    12 nm
  • Data wydania
    Q3/2018
Pozycje we wszystkich rankingach

Wspólne stanowiska ASUS Dual GeForce RTX 2080 OC Evo GPU w popularnych benchmarkach, dla porównania z innymi modelami.

  • FP32 Performance (Single-precision TFLOPS)
    1332 place
  • 3DMark Benchmark
    1015 place
  • Battlefield 5
    1114 place
  • Shadow of the Tomb Raider
    973 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    1114 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    1594 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    677 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    819 place

Benchmarki

Badania eksploatacyjne GPU

Published results: 2

3DMark graphics tests

Each row is a separate graphics subtest. Scores are not game FPS.

Test and settingsASUS Dual GeForce RTX 2080 OC Evo
3DMark – Time Spy — Graphics Score / DirectX 12 11061 points Base GPU test: Nvidia GeForce RTX 2080 VRAM: 8 GBTest CPU: AMD Ryzen 9 7950X3DOS: Windows 11Graphics API: DirectX 12HVCI: enabledApplication version unreported
3DMark – Steel Nomad — Steel Nomad Score / DirectX 12 2630 points Base GPU test: Nvidia GeForce RTX 2080 VRAM: 8 GBOS: Windows 11Graphics API: DirectX 12HVCI: enabledApplication version unreported

A base GPU test is a reference for cards using that GPU and the same memory capacity. Board overclocking, cooling and power limits can change the result.

Porównaj wyniki popularnych benchmarków ASUS Dual GeForce RTX 2080 OC Evo z innymi kartami graficznymi, aby zrozumieć rzeczywistą szybkość działania GPU podczas przetwarzania treści.

Testy obejmują pracę ze zmiennoprzecinkową, tworzenie modeli 3D, wydobywanie kryptowalut.

These are saved results from the earlier catalog. Measurement dates and test configurations were not recorded. Models with no comparable results are omitted.

Recent models: test results with identified primary sources — Game frame rates

Archived results. The original measurement method and test conditions have not been verified.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 to 32-bitowe obliczenia zmiennoprzecinkowe dla GPU, które są wymagane w grach 3D.

Higher values are better in this metric.

10.77 TFLOPS
ASUS Dual GeForce RTX 2080 OC Evo
10.86 TFLOPS
10.84 TFLOPS
10.77 TFLOPS
3DMark Benchmark
3DMark jest przeznaczony dla graczy, overclockerów i twórców systemów, którzy chcą w pełni wykorzystać możliwości swojego sprzętu.

Higher values are better in this metric.

Battlefield 5
Battlefield 5 to realistyczna gra, z wbudowanym benchmarkiem, bardzo dobrze nadająca się jako test dla kart graficznych.

Higher values are better in this metric.

Shadow of the Tomb Raider
Shadow of the Tomb Raider posiada wbudowany benchmark, oparty na silniku Crystal Dynamics Foundation.

Higher values are better in this metric.

Crypto-Mining Ethereum Hashrate (MH/s)
Ethash to algorytm wydobywania kryptowaluty Ethereum, który w pełni wykorzystuje możliwości procesora graficznego.

Higher values are better in this metric.

Crypto-Mining Ergo Hashrate (MH/s)
Algorytm Autolykos, na którym oparta jest kryptowaluta Ergo, pozwala na wykorzystanie do wydobycia nie tylko nowoczesnych procesorów graficznych, ale także procesorów poprzedniej generacji.

Higher values are better in this metric.

Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate wydobycia kryptowaluty Ravencoin na algorytmie KawPoW jest najszybszy na nowoczesnych kartach graficznych.

Higher values are better in this metric.

Crypto-Mining Vertcoin Hashrate (MH/s)
Kryptowaluta VertCoin może być wydobywana zarówno na układach Nvidia, jak i AMD i jest interesująca, ponieważ doskonale radzi sobie na starych kartach graficznych, takich jak GTX1050, R9 290, a nawet GTX970.

Higher values are better in this metric.

0.61 MH/s
ASUS Dual GeForce RTX 2080 OC Evo
0.62 MH/s
0.62 MH/s
0.61 MH/s

Synonimy

Nearby models in the composite benchmark index.

These are saved results from the earlier catalog. Measurement dates and test configurations were not recorded. Models with no comparable results are omitted. Index 0–100: equal-weight mean of each score relative to the best saved score among models with both tests. Tests: Battlefield 5 + Shadow of the Tomb Raider. This index does not predict performance in every workload.

Recent models: test results with identified primary sources — Game frame rates

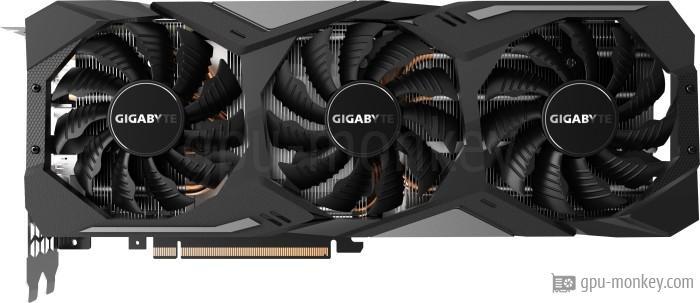

GIGABYTE GeForce RTX 2080 Gaming OC 8G GIGABYTE GeForce RTX 2080 Gaming OC 8G Zobacz
GIGABYTE GeForce RTX 2080 Gaming OC White 8G GIGABYTE GeForce RTX 2080 Gaming OC White 8G Zobacz
ZOTAC GAMING GeForce RTX 2080 AMP ZOTAC GAMING GeForce RTX 2080 AMP Zobacz
ZOTAC GAMING GeForce RTX 2080 AMP MAXX ZOTAC GAMING GeForce RTX 2080 AMP MAXX Zobacz
ASUS Dual GeForce RTX 2080 OC ASUS Dual GeForce RTX 2080 OC Zobacz
MSI GeForce RTX 2080 Duke 8G OC MSI GeForce RTX 2080 Duke 8G OC Zobacz
KFA2 GeForce RTX 2080 HOF KFA2 GeForce RTX 2080 HOF Zobacz
KFA2 GeForce RTX 2080 EX OC KFA2 GeForce RTX 2080 EX OC Zobacz

*

Base Clock is the base GPU frequency stated by the manufacturer for this model.

Boost Clock describes automatic frequency increases. Actual clock speed varies with workload, temperature and power limits; it is not a guarantee of manual overclocking.
