Sapphire Pulse Radeon RX 5600 XT
Seleziona la scheda video 2
User rating
star star star star star
Rilasciato
Q1/2020
Sapphire Pulse Radeon RX 5600 XT

Scheda grafica Sapphire Pulse Radeon RX 5600 XT, specifiche e parametri di riferimento

1781 posto nella classifica generale Schede grafiche (GPU)!
Una panoramica dettagliata della scheda video Sapphire Pulse Radeon RX 5600 XT, la cui data di produzione è iniziata in Q1/2020. Tutte le specifiche tecniche sono presentate qui, così come i risultati delle prestazioni sotto forma di stime da benchmark moderni. Frequenza di clock iniziale 1.130 GHz. La scheda video supporta GDDR6 e contiene 6 GB memoria video a bordo. Il TDP è 160 W. Si consiglia di confrontare la GPU con altri modelli presenti sul nostro sito web per determinare le prestazioni migliori.

Specifiche

Dati tecnici
GPU
  • Basato su
    AMD Radeon RX 5600 XT
  • Execution Units
    36
  • Chip GPU
    Navi 10 XLE
  • Unità di uscita del rendering
    64
  • Shader
    2304
  • Unità di texture
    144
Memoria
  • Memory Bandwidth
    336 GB/s
  • Memory Bus
    192 bit
  • Dimensione della memoria
    6 GB
  • Memory Speed (legacy frequency label)
    1750 MHz
  • Tipo di memoria
    GDDR6
Frequenza di clock
  • Frequenza di base
    1130 MHz
  • Frequenza massima
    1750 MHz + 12%
  • Game Clock
    1615 MHz + 17%
  • Overclock
    Sì
Consumo di energia
  • Maximum Junction Temperature
    —
  • TDP
    160 W
  • TDP (up)
    195 W
Raffreddamento
  • Cooler-Type
    Air cooling
  • Fan-Type
    Axial
  • Ventilatore 1
    2 x 100 mm
  • Ventilatore 2
    —
  • Noise (Idle)
    34 dB
  • Noise (Load)
    38 dB
Connettività
  • DisplayPort Ports
    3 × DisplayPort 1.4
  • Porte DVI
    —
  • HDCP Version
    2.3
  • Porte HDMI
    1 × HDMI 2.0b
  • Max. Visualizzazioni
    4
  • PCIe Interface
    PCIe 4.0 x16
  • Power Connectors
    1 x 8-Pin
  • USB-C Ports
    —
  • VGA Ports
    —
Featureset
  • DirectX
    12_2
  • DLSS / FSR
    No
  • LED
    No LED lighting
  • Risoluzione massima
    7680 × 4320
  • Raytracing
    Sì
Codec video supportati
  • AV1
    No
  • h264
    Decode / Encode
  • h265 / HEVC
    Decode / Encode
  • VP8
    Decode
  • VP9
    Decode / Encode
Dimensioni
  • Altezza
    135 mm
  • Lunghezza
    254 mm
  • Slot Size
    3 PCIe-Slots
  • Weight
    —
  • Width
    47 mm
Dati aggiuntivi
  • Specifica
    data sheet
  • Launch Price (historical)
    —
  • Part Number
    11296-01-20G
  • Process Technology
    7 nm
  • Data di rilascio
    Q1/2020
Posizioni in tutte le classifiche

Posizioni comuni Sapphire Pulse Radeon RX 5600 XT GPU in benchmark popolari, per un confronto con altri modelli.

  • FP32 Performance (Single-precision TFLOPS)
    1792 place
  • 3DMark Benchmark
    1998 place
  • Battlefield 5
    1788 place
  • Shadow of the Tomb Raider
    1794 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    1157 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    1571 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    1551 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    948 place

Manufacturer versions

Board specifications and benchmark results are specific to each version.

All models based on this GPU

Benchmark (test)

Test di performance GPU

Confrontare i punteggi dei benchmark più diffusi Sapphire Pulse Radeon RX 5600 XT con altre schede grafiche per capire la reale velocità della GPU nell'elaborazione dei contenuti.

I test includono il lavoro con la virgola mobile, la creazione di modelli 3D, il mining di criptovalute.

These are saved results from the earlier catalog. Measurement dates and test configurations were not recorded. Models with no comparable results are omitted.

Recent models: test results with identified primary sources — Game frame rates

Archive: saved catalog source links. The original measurement method and test conditions have not been verified; current source pages may differ from the imported content. Sapphire Pulse Radeon RX 5600 XT

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 è un calcolo in virgola mobile a 32 bit per la GPU che è richiesto per il gioco 3D.

Higher values are better in this metric.

3DMark Benchmark
3DMark è progettato per i giocatori, gli overclocker e i costruttori di sistemi che vogliono ottenere il massimo dal loro hardware.

Higher values are better in this metric.

Battlefield 5
Battlefield 5 è un gioco realistico, con un benchmark incorporato, molto adatto come test per le schede grafiche.

Higher values are better in this metric.

Shadow of the Tomb Raider
Shadow of the Tomb Raider ha un benchmark incorporato, basato sul motore Crystal Dynamics Foundation.

Higher values are better in this metric.

Crypto-Mining Ethereum Hashrate (MH/s)
Ethash è un algoritmo per il mining della criptovaluta Ethereum che sfrutta al massimo la GPU.

Higher values are better in this metric.

Crypto-Mining Ergo Hashrate (MH/s)
L'algoritmo Autolykos, su cui si basa la criptovaluta Ergo, permette non solo alle moderne GPU di essere utilizzate per il mining, ma anche alla passata generazione di GPU.

Higher values are better in this metric.

79 MH/s
Sapphire Pulse Radeon RX 5600 XT
80 MH/s
80 MH/s
79 MH/s
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining della criptovaluta Ravencoin sull'algoritmo KawPoW è il più veloce sulle moderne schede video.

Higher values are better in this metric.

Crypto-Mining Vertcoin Hashrate (MH/s)
La criptovaluta VertCoin può essere estratta sia su Nvidia che su AMD ed è interessante perché si estrae perfettamente su vecchie GPU come GTX1050, R9 290 e persino GTX970.

Higher values are better in this metric.

0.58 MH/s
Sapphire Pulse Radeon RX 5600 XT
0.59 MH/s
0.59 MH/s
0.58 MH/s

Sinonimi

Nearby models in the composite benchmark index.

These are saved results from the earlier catalog. Measurement dates and test configurations were not recorded. Models with no comparable results are omitted. Index 0–100: equal-weight mean of each score relative to the best saved score among models with both tests. Tests: Battlefield 5 + Shadow of the Tomb Raider. This index does not predict performance in every workload.

Recent models: test results with identified primary sources — Game frame rates

XFX Radeon RX 5600 XT Thicc III Pro XFX Radeon RX 5600 XT Thicc III Pro Vedi

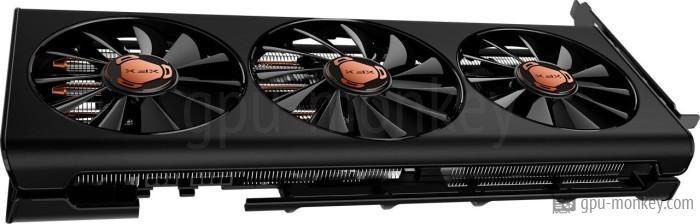

XFX Radeon RX 5600 XT Thicc III Ultra XFX Radeon RX 5600 XT Thicc III Ultra Vedi
ASUS Dual GeForce RTX 2060 SUPER EVO ASUS Dual GeForce RTX 2060 SUPER EVO Vedi
ASUS Dual GeForce RTX 2060 SUPER EVO V2 ASUS Dual GeForce RTX 2060 SUPER EVO V2 Vedi
PowerColor Radeon RX 5600 XT Red Devil PowerColor Radeon RX 5600 XT Red Devil Vedi
MSI Radeon RX 5600 XT Gaming X MSI Radeon RX 5600 XT Gaming X Vedi
ASRock Radeon RX 5600 XT Phantom Gaming D3 6G OC ASRock Radeon RX 5600 XT Phantom Gaming D3 6G OC Vedi
ASRock Radeon RX 5600 XT Phantom Gaming D2 6G OC ASRock Radeon RX 5600 XT Phantom Gaming D2 6G OC Vedi

*

Base Clock is the base GPU frequency stated by the manufacturer for this model.

Boost Clock describes automatic frequency increases. Actual clock speed varies with workload, temperature and power limits; it is not a guarantee of manual overclocking.
