PowerColor Radeon RX 5700

Scheda grafica PowerColor Radeon RX 5700, specifiche e parametri di riferimento

1646 posto nella classifica generale Schede grafiche (GPU)!
Una panoramica dettagliata della scheda video PowerColor Radeon RX 5700, la cui data di produzione è iniziata in Q3/2019. Tutte le specifiche tecniche sono presentate qui, così come i risultati delle prestazioni sotto forma di stime da benchmark moderni. Frequenza di clock iniziale 1.465 GHz. La scheda video supporta GDDR6 e contiene 8 GB memoria video a bordo. Il TDP è 180 W. Si consiglia di confrontare la GPU con altri modelli presenti sul nostro sito web per determinare le prestazioni migliori.

Specifiche

Dati tecnici
GPU
  • Basato su
    AMD Radeon RX 5700
  • Execution Units
    36
  • Chip GPU
    Navi 10
  • Unità di uscita del rendering
    64
  • Shader
    2304
  • Unità di texture
    144
Memoria
  • Memory Bandwidth
    448 GB/s
  • Memory Bus
    256 bit
  • Dimensione della memoria
    8 GB
  • Memory Speed (legacy frequency label)
    1750 MHz
  • Tipo di memoria
    GDDR6
Frequenza di clock
  • Frequenza di base
    1465 MHz
  • Frequenza massima
    1725 MHz
  • Game Clock
    1625 MHz
  • Overclock
    Sì
Consumo di energia
  • Maximum Junction Temperature
    —
  • TDP
    180 W
  • TDP (up)
    220 W
Raffreddamento
  • Cooler-Type
    Air cooling
  • Fan-Type
    Radial
  • Ventilatore 1
    1 x 80 mm
  • Ventilatore 2
    —
  • Noise (Idle)
    0 dB / Silent
  • Noise (Load)
    46-47 dB
Connettività
  • DisplayPort Ports
    3 × DisplayPort 1.4
  • Porte DVI
    —
  • HDCP Version
    2.3
  • Porte HDMI
    1 × HDMI 2.0b
  • Max. Visualizzazioni
    4
  • PCIe Interface
    PCIe 4.0 x16
  • Power Connectors
    1 x 6-Pin, 1 x 8-Pin
  • USB-C Ports
    —
  • VGA Ports
    —
Featureset
  • DirectX
    12_2
  • DLSS / FSR
    No
  • LED
    No LED lighting
  • Risoluzione massima
    7680 × 4320
  • Raytracing
    Sì
Codec video supportati
  • AV1
    No
  • h264
    Decode / Encode
  • h265 / HEVC
    Decode / Encode
  • VP8
    Decode
  • VP9
    Decode / Encode
Dimensioni
  • Altezza
    126 mm
  • Lunghezza
    281 mm
  • Slot Size
    2 PCIe-Slots
  • Weight
    —
  • Width
    42 mm
Dati aggiuntivi
  • Specifica
    data sheet
  • Launch Price (historical)
    329 $
  • Part Number
    —
  • Process Technology
    7 nm
  • Data di rilascio
    Q3/2019
Posizioni in tutte le classifiche

Posizioni comuni PowerColor Radeon RX 5700 GPU in benchmark popolari, per un confronto con altri modelli.

  • FP32 Performance (Single-precision TFLOPS)
    1836 place
  • 3DMark Benchmark
    1817 place
  • Battlefield 5
    1721 place
  • Shadow of the Tomb Raider
    1599 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    718 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    1126 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    1885 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    662 place

Manufacturer versions

Board specifications and benchmark results are specific to each version.

All models based on this GPU

Benchmark (test)

Test di performance GPU

Confrontare i punteggi dei benchmark più diffusi PowerColor Radeon RX 5700 con altre schede grafiche per capire la reale velocità della GPU nell'elaborazione dei contenuti.

I test includono il lavoro con la virgola mobile, la creazione di modelli 3D, il mining di criptovalute.

These are saved results from the earlier catalog. Measurement dates and test configurations were not recorded. Models with no comparable results are omitted.

Recent models: test results with identified primary sources — Game frame rates

Archived results. The original measurement method and test conditions have not been verified.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 è un calcolo in virgola mobile a 32 bit per la GPU che è richiesto per il gioco 3D.

Higher values are better in this metric.

7.95 TFLOPS
PowerColor Radeon RX 5700
7.96 TFLOPS
7.96 TFLOPS
7.95 TFLOPS
3DMark Benchmark
3DMark è progettato per i giocatori, gli overclocker e i costruttori di sistemi che vogliono ottenere il massimo dal loro hardware.

Higher values are better in this metric.

Battlefield 5
Battlefield 5 è un gioco realistico, con un benchmark incorporato, molto adatto come test per le schede grafiche.

Higher values are better in this metric.

Shadow of the Tomb Raider
Shadow of the Tomb Raider ha un benchmark incorporato, basato sul motore Crystal Dynamics Foundation.

Higher values are better in this metric.

Crypto-Mining Ethereum Hashrate (MH/s)
Ethash è un algoritmo per il mining della criptovaluta Ethereum che sfrutta al massimo la GPU.

Higher values are better in this metric.

Crypto-Mining Ergo Hashrate (MH/s)
L'algoritmo Autolykos, su cui si basa la criptovaluta Ergo, permette non solo alle moderne GPU di essere utilizzate per il mining, ma anche alla passata generazione di GPU.

Higher values are better in this metric.

Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining della criptovaluta Ravencoin sull'algoritmo KawPoW è il più veloce sulle moderne schede video.

Higher values are better in this metric.

16 MH/s
PowerColor Radeon RX 5700
17 MH/s
17 MH/s
16 MH/s
Crypto-Mining Vertcoin Hashrate (MH/s)
La criptovaluta VertCoin può essere estratta sia su Nvidia che su AMD ed è interessante perché si estrae perfettamente su vecchie GPU come GTX1050, R9 290 e persino GTX970.

Higher values are better in this metric.

Sinonimi

Nearby models in the composite benchmark index.

These are saved results from the earlier catalog. Measurement dates and test configurations were not recorded. Models with no comparable results are omitted. Index 0–100: equal-weight mean of each score relative to the best saved score among models with both tests. Tests: Battlefield 5 + Shadow of the Tomb Raider. This index does not predict performance in every workload.

Recent models: test results with identified primary sources — Game frame rates

PowerColor Radeon RX 5700 ITX PowerColor Radeon RX 5700 ITX Vedi
Sapphire Radeon RX 5700 8G Sapphire Radeon RX 5700 8G Vedi
XFX Radeon RX 5700 XFX Radeon RX 5700 Vedi
Gainward GeForce RTX 2060 SUPER Phantom GS Gainward GeForce RTX 2060 SUPER Phantom GS Vedi
MSI Radeon RX 5700 Mech GP MSI Radeon RX 5700 Mech GP Vedi
MSI Radeon RX 5700 Mech MSI Radeon RX 5700 Mech Vedi

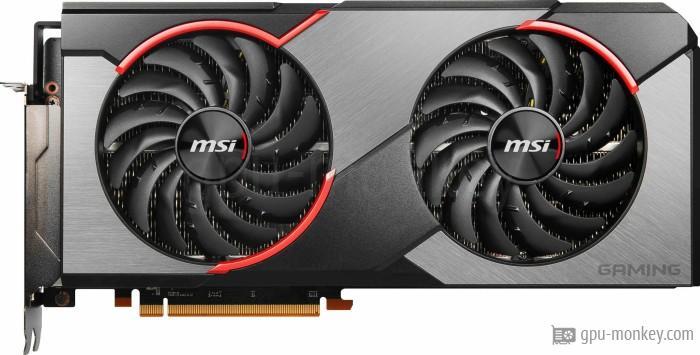

MSI Radeon RX 5700 Gaming MSI Radeon RX 5700 Gaming Vedi
MSI Radeon RX 5700 Evoke GP MSI Radeon RX 5700 Evoke GP Vedi

*

Base Clock is the base GPU frequency stated by the manufacturer for this model.

Boost Clock describes automatic frequency increases. Actual clock speed varies with workload, temperature and power limits; it is not a guarantee of manual overclocking.
