ZOTAC GAMING GeForce RTX 3060 Twin Edge OC
Select video card 2
Overall score
star star star star star
Released
Q1/2021
ZOTAC GAMING GeForce RTX 3060 Twin Edge OC

Graphics card ZOTAC GAMING GeForce RTX 3060 Twin Edge OC, specifications and benchmarks

1475 place in the overall ranking Graphics Cards!
It is a detailed review of ZOTAC GAMING GeForce RTX 3060 Twin Edge OC, the date of manufacture started in Q1/2021. Here are all specifications and the results of performance in the form of modern benchmark estimations. The base clock frequency is 1.320 GHz. The GPU supports GDDR6 with an 12 GB graphics memory. TDP is 170 W. We recommend comparing the GPU with other models on our website to determine the best performance.

Specifications

Technical data
General info

Key features of the graphics card ZOTAC GAMING GeForce RTX 3060 Twin Edge OC.

  • Based on
    NVIDIA GeForce RTX 3060
  • GPU Chip
    GA106-300-A1
  • Execution units
    28
  • Shader
    3584
  • Render Output Units
    64
  • Texture Units
    112
no data
Memory settings

The characteristics of the video memory on board the graphics card. The higher the better.

  • Memory Size
    12 GB
  • Memory Type
    GDDR6
  • Memory Speed
    1.875 GHz
  • Memory Bandwith
    360 GB/s
  • Memory Interface
    192 bit
no data
Clock frequency

Video card clock speed and overclocking potential ZOTAC GAMING GeForce RTX 3060 Twin Edge OC.

  • Base Clock
    1.320 GHz
  • Boost Clock
    1.807 GHz+ 2 %
  • Avg (Game) Clock
    1.777 GHz
  • Overclocking
    Yes
* see below
Thermal Management

Connectors, the number of thermal watts emitted in normal mode and at overclocking.

  • TDP
    170 W
  • TDP (up)
    170 W
  • Tjunction max
    --
  • PCIe-Power
    1 x 8-Pin
no data
Cooler & Fans type

Cooling system parameters, connectors and fan types ZOTAC GAMING GeForce RTX 3060 Twin Edge OC.

  • Fan-Type
    Axial
  • Cooler-Type
    Air cooling
  • Fan 1
    2 x 90 mm
  • Noise (Idle)
    0 dB / Silent
  • Fan 2
    --
  • Noise (Load)
    35 dB
no data
Interfaces

Connectivity and connections.

  • Max. Displays
    4
  • HDCP-Version
    2.3
  • HDMI Ports
    1x HDMI v2.1
  • DP Ports
    3x DP v1.4a
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical data

Hardware capabilities and maintaining the API.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    Yes
  • LED
    ZOTAC SPECTRA
no data
Supported Video Codecs

Built-in support for video and image compression standards.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode
  • AV1
    Decode
no data
Dimensions
  • Length
    224 mm
  • Height
    116 mm
  • Width
    39 mm
  • Width (Slots)
    2 PCIe-Slots
  • Weight
    --
no data
More information
  • GPU Interface
    PCIe 4.0 x 16
  • Release date
    Q1/2021
  • Release price
    399 $
  • Structure size
    8 nm
  • Part-no
    ZT-A30600H-10M
  • Documents
    data sheet
no data
Positions in all rankings

Common positions ZOTAC GAMING GeForce RTX 3060 Twin Edge OC GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    959 place
  • Battlefield 5
    1538 place
  • Shadow of the Tomb Raider
    1187 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    1794 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    930 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    1503 place
  • 3DMark Benchmark
    1533 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    1712 place

Benchmarks

Performance tests GPU

Compare the scores of popular benchmarks ZOTAC GAMING GeForce RTX 3060 Twin Edge OC with other graphics cards to understand the real speed of the GPU when processing content.

Tests include working with floating point, creating 3D models, mining cryptocurrencies.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
55 fps (avg)
55 fps (avg)
54 fps (avg)
ZOTAC GAMING GeForce RTX 3060 Twin Edge OC
54 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
44 fps (avg)
44 fps (avg)
43 fps (avg)
ZOTAC GAMING GeForce RTX 3060 Twin Edge OC
43 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
38 MH/s
38 MH/s
36 MH/s
ZOTAC GAMING GeForce RTX 3060 Twin Edge OC
36 MH/s
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
22 MH/s
22 MH/s
21 MH/s
ZOTAC GAMING GeForce RTX 3060 Twin Edge OC
21 MH/s
Crypto-Mining Vertcoin Hashrate (MH/s)
VertCoin cryptocurrency can be mined on both Nvidia and AMD and is interesting because it mines perfectly on old GPUs like GTX1050, R9 290 and even GTX970
0.41 MH/s
0.41 MH/s
0.4 MH/s
ZOTAC GAMING GeForce RTX 3060 Twin Edge OC
0.4 MH/s

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with ZOTAC GAMING GeForce RTX 3060 Twin Edge OC.

GALAX GeForce RTX 2070 EX Gamer (1-Click OC) View
EVGA GeForce RTX 3060 XC Black Gaming View
GIGABYTE GeForce RTX 3060 Gaming OC 12G (rev. 2.0) LHR View
GIGABYTE GeForce RTX 3060 Vision OC 12G (rev. 2.0) LHR View
ASUS KO GeForce RTX 3060 View
ASUS Phoenix GeForce RTX 3060 View
MSI GeForce RTX 3060 VENTUS 3X 12G OC View

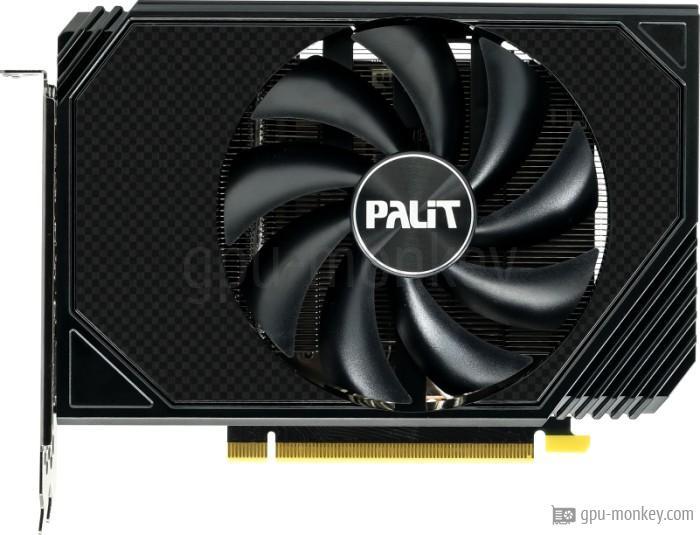

Palit GeForce RTX 3060 StormX OC View

*

Base Clock - this is the guaranteed speed that the manufacturer sets for the type of cooling and binning that the GPU comes out of the factory with.

Boost Clock - this is a theoretical minimum speed to which the video card can be overclocked considering the cooling and binning requirements.
