ASUS Dual GeForce RTX 3060 OC Edition

Graphics card ASUS Dual GeForce RTX 3060 OC Edition, specifications and benchmarks

1354 place in the overall ranking Graphics Cards!
It is a detailed review of ASUS Dual GeForce RTX 3060 OC Edition, the date of manufacture started in Q1/2021. Here are all specifications and the results of performance in the form of modern benchmark estimations. The base clock frequency is 1.320 GHz. The GPU supports GDDR6 with an 12 GB graphics memory. TDP is 170 W. We recommend comparing the GPU with other models on our website to determine the best performance.

Specifications

Technical data
General info

Key features of the graphics card ASUS Dual GeForce RTX 3060 OC Edition.

  • Based on
    NVIDIA GeForce RTX 3060
  • GPU Chip
    GA106-300-A1
  • Execution units
    28
  • Shader
    3584
  • Render Output Units
    64
  • Texture Units
    112
no data
Memory settings

The characteristics of the video memory on board the graphics card. The higher the better.

  • Memory Size
    12 GB
  • Memory Type
    GDDR6
  • Memory Speed
    1.875 GHz
  • Memory Bandwith
    360 GB/s
  • Memory Interface
    192 bit
no data
Clock frequency

Video card clock speed and overclocking potential ASUS Dual GeForce RTX 3060 OC Edition.

  • Base Clock
    1.320 GHz
  • Boost Clock
    1.867 GHz+ 5 %
  • Avg (Game) Clock
    1.837 GHz
  • Overclocking
    Yes
* see below
Thermal Management

Connectors, the number of thermal watts emitted in normal mode and at overclocking.

  • TDP
    170 W
  • TDP (up)
    170 W
  • Tjunction max
    --
  • PCIe-Power
    1 x 8-Pin
no data
Cooler & Fans type

Cooling system parameters, connectors and fan types ASUS Dual GeForce RTX 3060 OC Edition.

  • Fan-Type
    Axial
  • Cooler-Type
    Air cooling
  • Fan 1
    2 x 100 mm
  • Noise (Idle)
    0 dB / Silent
  • Fan 2
    --
  • Noise (Load)
    --
no data
Interfaces

Connectivity and connections.

  • Max. Displays
    4
  • HDCP-Version
    2.3
  • HDMI Ports
    1x HDMI v2.1
  • DP Ports
    3x DP v1.4a
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical data

Hardware capabilities and maintaining the API.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    Yes
  • LED
    No LED lighting
no data
Supported Video Codecs

Built-in support for video and image compression standards.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode
  • AV1
    Decode
no data
Dimensions
  • Length
    200 mm
  • Height
    123 mm
  • Width
    38 mm
  • Width (Slots)
    2 PCIe-Slots
  • Weight
    --
no data
More information
  • GPU Interface
    PCIe 4.0 x 16
  • Release date
    Q1/2021
  • Release price
    459 $
  • Structure size
    8 nm
  • Part-no
    DUAL-RTX3060-O12G
  • Documents
    data sheet
no data
Positions in all rankings

Common positions ASUS Dual GeForce RTX 3060 OC Edition GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    897 place
  • Battlefield 5
    1297 place
  • Shadow of the Tomb Raider
    1075 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    1809 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    878 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    1323 place
  • 3DMark Benchmark
    1488 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    1705 place

Benchmarks

Performance tests GPU

Compare the scores of popular benchmarks ASUS Dual GeForce RTX 3060 OC Edition with other graphics cards to understand the real speed of the GPU when processing content.

Tests include working with floating point, creating 3D models, mining cryptocurrencies.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
57 fps (avg)
57 fps (avg)
56 fps (avg)
ASUS Dual GeForce RTX 3060 OC Edition
56 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
46 fps (avg)
46 fps (avg)
45 fps (avg)
ASUS Dual GeForce RTX 3060 OC Edition
45 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
38 MH/s
38 MH/s
36 MH/s
ASUS Dual GeForce RTX 3060 OC Edition
36 MH/s
Gigabyte GeForce RTX 2060 Windforce OC 12G
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
111 MH/s
111 MH/s
110 MH/s
ASUS Dual GeForce RTX 3060 OC Edition
110 MH/s
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
Crypto-Mining Vertcoin Hashrate (MH/s)
VertCoin cryptocurrency can be mined on both Nvidia and AMD and is interesting because it mines perfectly on old GPUs like GTX1050, R9 290 and even GTX970

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with ASUS Dual GeForce RTX 3060 OC Edition.

PowerColor Radeon RX Vega 56 Red Dragon View

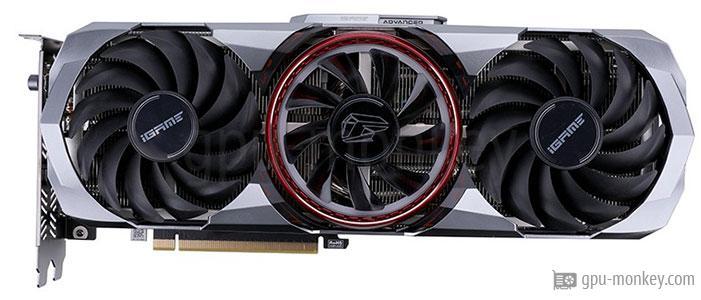

Colorful iGame GeForce RTX 3060 Advanced OC 12G-V View
ASRock Phantom Gaming X Radeon RX Vega 56 View
GIGABYTE Radeon RX Vega 56 8G View
Palit GeForce RTX 2070 SUPER JS View
GIGABYTE AORUS GeForce RTX 3060 Elite 12G View
Palit GeForce RTX 2070 SUPER GP PREMIUM View
MSI GeForce RTX 2070 SUPER GAMING X View

*

Base Clock - this is the guaranteed speed that the manufacturer sets for the type of cooling and binning that the GPU comes out of the factory with.

Boost Clock - this is a theoretical minimum speed to which the video card can be overclocked considering the cooling and binning requirements.
