XFX Radeon RX 580 GTS Black Edition 8GB

Graphics card XFX Radeon RX 580 GTS Black Edition 8GB, specifications and benchmarks

2054 place in the overall ranking Graphics Cards!
It is a detailed review of XFX Radeon RX 580 GTS Black Edition 8GB, the date of manufacture started in Q2/2017. Here are all specifications and the results of performance in the form of modern benchmark estimations. The base clock frequency is 1.257 GHz. The GPU supports GDDR5 with an 8 GB graphics memory. TDP is 185 W. We recommend comparing the GPU with other models on our website to determine the best performance.

Specifications

Technical data
General info

Key features of the graphics card XFX Radeon RX 580 GTS Black Edition 8GB.

  • Based on
    AMD Radeon RX 580
  • GPU Chip
    Polaris 20 XT
  • Execution units
    36
  • Shader
    2304
  • Render Output Units
    32
  • Texture Units
    144
no data
Memory settings

The characteristics of the video memory on board the graphics card. The higher the better.

  • Memory Size
    8 GB
  • Memory Type
    GDDR5
  • Memory Speed
    2 GHz
  • Memory Bandwith
    256 GB/s
  • Memory Interface
    256 bit
no data
Clock frequency

Video card clock speed and overclocking potential XFX Radeon RX 580 GTS Black Edition 8GB.

  • Base Clock
    1.257 GHz
  • Boost Clock
    1.425 GHz+ 6 %
  • Overclocking
    Yes
* see below
Thermal Management

Connectors, the number of thermal watts emitted in normal mode and at overclocking.

  • TDP
    185 W
  • TDP (up)
    --
  • Tjunction max
    --
  • PCIe-Power
    1 x 8-Pin
no data
Cooler & Fans type

Cooling system parameters, connectors and fan types XFX Radeon RX 580 GTS Black Edition 8GB.

  • Fan-Type
    Axial
  • Cooler-Type
    Air cooling
  • Fan 1
    2 x 100 mm
  • Noise (Idle)
    --
  • Fan 2
    --
  • Noise (Load)
    --
no data
Interfaces

Connectivity and connections.

  • Max. Displays
    4
  • HDCP-Version
    2.2
  • HDMI Ports
    1x HDMI v2.0b
  • DP Ports
    3x DP v1.4
  • DVI Ports
    1
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical data

Hardware capabilities and maintaining the API.

  • Max. resolution
    7680x4320
  • DirectX
    12
  • Raytracing
    No
  • DLSS / FSR
    No
  • LED
    No LED lighting
no data
Supported Video Codecs

Built-in support for video and image compression standards.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode
  • AV1
    No
no data
Dimensions
  • Length
    270 mm
  • Height
    124 mm
  • Width
    40 mm
  • Width (Slots)
    2 PCIe-Slots
  • Weight
    --
no data
More information
  • GPU Interface
    PCIe 3.0 x 16
  • Release date
    Q2/2017
  • Release price
    --
  • Structure size
    14 nm
  • Part-no
    RX-580P826D6
  • Documents
    data sheet
no data
Positions in all rankings

Common positions XFX Radeon RX 580 GTS Black Edition 8GB GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    2108 place
  • Battlefield 5
    2408 place
  • Shadow of the Tomb Raider
    2279 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    1885 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    1896 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    2047 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    1272 place

Benchmarks

Performance tests GPU

Compare the scores of popular benchmarks XFX Radeon RX 580 GTS Black Edition 8GB with other graphics cards to understand the real speed of the GPU when processing content.

Tests include working with floating point, creating 3D models, mining cryptocurrencies.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
39 fps (avg)
39 fps (avg)
38 fps (avg)
XFX Radeon RX 580 GTS Black Edition 8GB
38 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
25 fps (avg)
25 fps (avg)
24 fps (avg)
XFX Radeon RX 580 GTS Black Edition 8GB
24 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
68 MH/s
68 MH/s
67 MH/s
XFX Radeon RX 580 GTS Black Edition 8GB
67 MH/s
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
Crypto-Mining Vertcoin Hashrate (MH/s)
VertCoin cryptocurrency can be mined on both Nvidia and AMD and is interesting because it mines perfectly on old GPUs like GTX1050, R9 290 and even GTX970

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with XFX Radeon RX 580 GTS Black Edition 8GB.

ASUS ROG Strix GeForce GTX 1070 OC edition View
XFX Radeon RX 580 GTR XXX Edition 8GB Crimson View

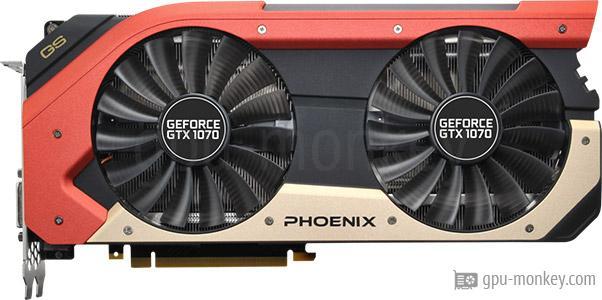

Gainward GeForce GTX 1070 Phoenix GS View
XFX Radeon RX 580 GTS Black Core Edition 8GB View
ASUS Dual GeForce RTX 2060 EVO View
ZOTAC GAMING GeForce RTX 2060 Twin Fan View
KFA2 GeForce RTX 2060 PLUS Gamer (1-Click OC) View
Colorful GeForce RTX 2060 6G V2-V View

*

Base Clock - this is the guaranteed speed that the manufacturer sets for the type of cooling and binning that the GPU comes out of the factory with.

Boost Clock - this is a theoretical minimum speed to which the video card can be overclocked considering the cooling and binning requirements.
