MSI Radeon RX 5700 Evoke

Graphics card MSI Radeon RX 5700 Evoke, specifications and benchmarks

1550 place in the overall ranking Graphics Cards!
It is a detailed review of MSI Radeon RX 5700 Evoke, the date of manufacture started in Q3/2019. Here are all specifications and the results of performance in the form of modern benchmark estimations. The base clock frequency is 1.490 GHz+ 2 %. The GPU supports GDDR6 with an 8 GB graphics memory. TDP is 180 W. We recommend comparing the GPU with other models on our website to determine the best performance.

Specifications

Technical data
General info

Key features of the graphics card MSI Radeon RX 5700 Evoke.

  • Based on
    AMD Radeon RX 5700
  • GPU Chip
    Navi 10
  • Execution units
    36
  • Shader
    2304
  • Render Output Units
    64
  • Texture Units
    144
no data
Memory settings

The characteristics of the video memory on board the graphics card. The higher the better.

  • Memory Size
    8 GB
  • Memory Type
    GDDR6
  • Memory Speed
    1.75 GHz
  • Memory Bandwith
    448 GB/s
  • Memory Interface
    256 bit
no data
Clock frequency

Video card clock speed and overclocking potential MSI Radeon RX 5700 Evoke.

  • Base Clock
    1.490 GHz+ 2 %
  • Boost Clock
    1.725 GHz
  • Avg (Game) Clock
    1.650 GHz+ 2 %
  • Overclocking
    Yes
* see below
Thermal Management

Connectors, the number of thermal watts emitted in normal mode and at overclocking.

  • TDP
    180 W
  • TDP (up)
    220 W
  • Tjunction max
    --
  • PCIe-Power
    1 x 8-Pin
no data
Cooler & Fans type

Cooling system parameters, connectors and fan types MSI Radeon RX 5700 Evoke.

  • Fan-Type
    Axial
  • Cooler-Type
    Air cooling
  • Fan 1
    2 x 90 mm
  • Noise (Idle)
    0 dB / Silent
  • Fan 2
    --
  • Noise (Load)
    43 dB
no data
Interfaces

Connectivity and connections.

  • Max. Displays
    4
  • HDCP-Version
    2.3
  • HDMI Ports
    1x HDMI v2.0b
  • DP Ports
    3x DP v1.4
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical data

Hardware capabilities and maintaining the API.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    No
  • LED
    No LED lighting
no data
Supported Video Codecs

Built-in support for video and image compression standards.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode / Encode
  • AV1
    No
no data
Dimensions
  • Length
    254 mm
  • Height
    129 mm
  • Width
    51 mm
  • Width (Slots)
    3 PCIe-Slots
  • Weight
    892 g
no data
More information
  • GPU Interface
    PCIe 4.0 x 16
  • Release date
    Q3/2019
  • Release price
    359 $
  • Structure size
    7 nm
  • Part-no
    --
  • Documents
    data sheet
no data
Positions in all rankings

Common positions MSI Radeon RX 5700 Evoke GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    1782 place
  • Battlefield 5
    1713 place
  • Shadow of the Tomb Raider
    1714 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    751 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    1122 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    1947 place
  • 3DMark Benchmark
    1807 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    666 place

Benchmarks

Performance tests GPU

Compare the scores of popular benchmarks MSI Radeon RX 5700 Evoke with other graphics cards to understand the real speed of the GPU when processing content.

Tests include working with floating point, creating 3D models, mining cryptocurrencies.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
52 fps (avg)
52 fps (avg)
51 fps (avg)
MSI Radeon RX 5700 Evoke
51 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
36 fps (avg)
36 fps (avg)
35 fps (avg)
MSI Radeon RX 5700 Evoke
35 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
17 MH/s
17 MH/s
16 MH/s
MSI Radeon RX 5700 Evoke
16 MH/s
Crypto-Mining Vertcoin Hashrate (MH/s)
VertCoin cryptocurrency can be mined on both Nvidia and AMD and is interesting because it mines perfectly on old GPUs like GTX1050, R9 290 and even GTX970

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with MSI Radeon RX 5700 Evoke.

GIGABYTE GeForce RTX 3060 Eagle 12G (rev. 2.0) LHR View
ASRock Radeon RX 5700 8G View
ASUS Phoenix GeForce RTX 3060 V2 LHR View
MSI Radeon RX 5700 Mech View
ASUS TUF Gaming GeForce RTX 3060 V2 LHR View
Colorful iGame GeForce RTX 3060 Mini OC 12G L-V LHR View

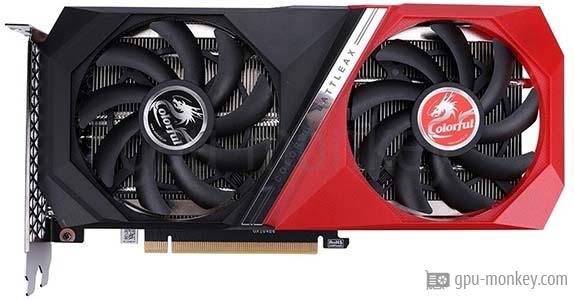

Colorful GeForce RTX 3060 NB DUO 12G L-V LHR V2 View
MSI Radeon RX 5700 8G View

*

Base Clock - this is the guaranteed speed that the manufacturer sets for the type of cooling and binning that the GPU comes out of the factory with.

Boost Clock - this is a theoretical minimum speed to which the video card can be overclocked considering the cooling and binning requirements.
