ASUS Turbo GeForce GTX 1080 TI

Graphics card ASUS Turbo GeForce GTX 1080 TI, specifications and benchmarks

1073 place in the overall ranking Graphics Cards!
It is a detailed review of ASUS Turbo GeForce GTX 1080 TI, the date of manufacture started in Q1/2017. Here are all specifications and the results of performance in the form of modern benchmark estimations. The base clock frequency is 1.480 GHz. The GPU supports GDDR5X with an 11 GB graphics memory. TDP is 250 W. We recommend comparing the GPU with other models on our website to determine the best performance.

Specifications

Technical data
General info

Key features of the graphics card ASUS Turbo GeForce GTX 1080 TI.

  • Based on
    NVIDIA GeForce GTX 1080 Ti
  • GPU Chip
    GP102-350-K1-A1
  • Execution units
    28
  • Shader
    3584
  • Render Output Units
    88
  • Texture Units
    224
no data
Memory settings

The characteristics of the video memory on board the graphics card. The higher the better.

  • Memory Size
    11 GB
  • Memory Type
    GDDR5X
  • Memory Speed
    1.376 GHz
  • Memory Bandwith
    484 GB/s
  • Memory Interface
    352 bit
no data
Clock frequency

Video card clock speed and overclocking potential ASUS Turbo GeForce GTX 1080 TI.

  • Base Clock
    1.480 GHz
  • Boost Clock
    1.582 GHz
  • Overclocking
    Yes
* see below
Thermal Management

Connectors, the number of thermal watts emitted in normal mode and at overclocking.

  • TDP
    250 W
  • TDP (up)
    --
  • Tjunction max
    --
  • PCIe-Power
    1 x 6-Pin, 1 x 8-Pin
no data
Cooler & Fans type

Cooling system parameters, connectors and fan types ASUS Turbo GeForce GTX 1080 TI.

  • Fan-Type
    Radial
  • Cooler-Type
    Air cooling
  • Fan 1
    1 x 70 mm
  • Noise (Idle)
    --
  • Fan 2
    --
  • Noise (Load)
    --
no data
Interfaces

Connectivity and connections.

  • Max. Displays
    4
  • HDCP-Version
    2.2
  • HDMI Ports
    2x HDMI v2.0b
  • DP Ports
    2x DP v1.4
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical data

Hardware capabilities and maintaining the API.

  • Max. resolution
    7680x4320
  • DirectX
    12_1
  • Raytracing
    No
  • DLSS / FSR
    No
  • LED
    No LED lighting
no data
Supported Video Codecs

Built-in support for video and image compression standards.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode
  • AV1
    No
no data
Dimensions
  • Length
    267 mm
  • Height
    111 mm
  • Width
    38 mm
  • Width (Slots)
    2 PCIe-Slots
  • Weight
    --
no data
More information
  • GPU Interface
    PCIe 3.0 x 16
  • Release date
    Q1/2017
  • Release price
    799 $
  • Structure size
    16 nm
  • Part-no
    TURBO-GTX1080TI-11G
  • Documents
    data sheet
no data
Positions in all rankings

Common positions ASUS Turbo GeForce GTX 1080 TI GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    1159 place
  • Battlefield 5
    1101 place
  • Shadow of the Tomb Raider
    1411 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    854 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    1092 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    1037 place
  • 3DMark Benchmark
    1307 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    603 place

Benchmarks

Performance tests GPU

Compare the scores of popular benchmarks ASUS Turbo GeForce GTX 1080 TI with other graphics cards to understand the real speed of the GPU when processing content.

Tests include working with floating point, creating 3D models, mining cryptocurrencies.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
65 fps (avg)
65 fps (avg)
64 fps (avg)
ASUS Turbo GeForce GTX 1080 TI
64 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
40 fps (avg)
40 fps (avg)
39 fps (avg)
ASUS Turbo GeForce GTX 1080 TI
39 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
99 MH/s
99 MH/s
98 MH/s
ASUS Turbo GeForce GTX 1080 TI
98 MH/s
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
Crypto-Mining Vertcoin Hashrate (MH/s)
VertCoin cryptocurrency can be mined on both Nvidia and AMD and is interesting because it mines perfectly on old GPUs like GTX1050, R9 290 and even GTX970
0.8 MH/s
0.8 MH/s
0.78 MH/s
ASUS Turbo GeForce GTX 1080 TI
0.78 MH/s

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with ASUS Turbo GeForce GTX 1080 TI.

EVGA GeForce GTX 1080 Ti GAMING View

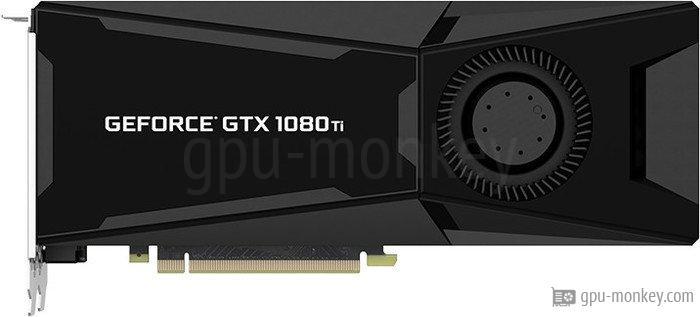

PNY GeForce GTX 1080 Ti Blower View
INNO3D GeForce RTX 2080 iCHILL FROSTBITE View
PNY GeForce RTX 2080 SUPER Blower View
EVGA GeForce RTX 2080 FTW3 ULTRA HYDRO COPPER GAMING View
GALAX GeForce RTX 2080 EX OC White View
Palit GeForce GTX 1080 Ti Founders Edition View
MSI GeForce RTX 2080 Sea Hawk X View

*

Base Clock - this is the guaranteed speed that the manufacturer sets for the type of cooling and binning that the GPU comes out of the factory with.

Boost Clock - this is a theoretical minimum speed to which the video card can be overclocked considering the cooling and binning requirements.
