GIGABYTE AORUS Radeon RX 5700 XT 8G

Graphics card GIGABYTE AORUS Radeon RX 5700 XT 8G, specifications and benchmarks

1271 place in the overall ranking Graphics Cards!
It is a detailed review of GIGABYTE AORUS Radeon RX 5700 XT 8G, the date of manufacture started in Q3/2019. Here are all specifications and the results of performance in the form of modern benchmark estimations. The base clock frequency is 1.770 GHz+ 10 %. The GPU supports GDDR6 with an 8 GB graphics memory. TDP is 225 W. We recommend comparing the GPU with other models on our website to determine the best performance.

Specifications

Technical data
General info

Key features of the graphics card GIGABYTE AORUS Radeon RX 5700 XT 8G.

  • Based on
    AMD Radeon RX 5700 XT
  • GPU Chip
    Navi 10 XT
  • Execution units
    40
  • Shader
    2560
  • Render Output Units
    64
  • Texture Units
    160
no data
Memory settings

The characteristics of the video memory on board the graphics card. The higher the better.

  • Memory Size
    8 GB
  • Memory Type
    GDDR6
  • Memory Speed
    1.75 GHz
  • Memory Bandwith
    448 GB/s
  • Memory Interface
    256 bit
no data
Clock frequency

Video card clock speed and overclocking potential GIGABYTE AORUS Radeon RX 5700 XT 8G.

  • Base Clock
    1.770 GHz+ 10 %
  • Boost Clock
    2.010 GHz+ 6 %
  • Avg (Game) Clock
    1.905 GHz+ 9 %
  • Overclocking
    Yes
* see below
Thermal Management

Connectors, the number of thermal watts emitted in normal mode and at overclocking.

  • TDP
    225 W
  • TDP (up)
    335 W
  • Tjunction max
    89 °C
  • PCIe-Power
    2 x 8-Pin
no data
Cooler & Fans type

Cooling system parameters, connectors and fan types GIGABYTE AORUS Radeon RX 5700 XT 8G.

  • Fan-Type
    Windforce (Axial)
  • Cooler-Type
    Air cooling
  • Fan 1
    3 x 82 mm
  • Noise (Idle)
    0 dB / Silent
  • Fan 2
    --
  • Noise (Load)
    44 dB
no data
Interfaces

Connectivity and connections.

  • Max. Displays
    4
  • HDCP-Version
    2.3
  • HDMI Ports
    3x HDMI v2.0b
  • DP Ports
    3x DP v1.4
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical data

Hardware capabilities and maintaining the API.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    No
  • LED
    GIGABYTE RGB Fusion
no data
Supported Video Codecs

Built-in support for video and image compression standards.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode / Encode
  • AV1
    No
no data
Dimensions
  • Length
    290 mm
  • Height
    123 mm
  • Width
    58 mm
  • Width (Slots)
    3 PCIe-Slots
  • Weight
    --
no data
More information
  • GPU Interface
    PCIe 4.0 x 16
  • Release date
    Q3/2019
  • Release price
    479 $
  • Structure size
    7 nm
  • Part-no
    --
  • Documents
    data sheet
no data
Positions in all rankings

Common positions GIGABYTE AORUS Radeon RX 5700 XT 8G GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    1358 place
  • Battlefield 5
    1239 place
  • Shadow of the Tomb Raider
    1432 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    719 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    974 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    1780 place
  • 3DMark Benchmark
    1520 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    706 place

Benchmarks

Performance tests GPU

Compare the scores of popular benchmarks GIGABYTE AORUS Radeon RX 5700 XT 8G with other graphics cards to understand the real speed of the GPU when processing content.

Tests include working with floating point, creating 3D models, mining cryptocurrencies.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
60 fps (avg)
60 fps (avg)
59 fps (avg)
GIGABYTE AORUS Radeon RX 5700 XT 8G
59 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
39 fps (avg)
39 fps (avg)
38 fps (avg)
GIGABYTE AORUS Radeon RX 5700 XT 8G
38 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
Crypto-Mining Vertcoin Hashrate (MH/s)
VertCoin cryptocurrency can be mined on both Nvidia and AMD and is interesting because it mines perfectly on old GPUs like GTX1050, R9 290 and even GTX970
0.72 MH/s
0.72 MH/s
0.71 MH/s
GIGABYTE AORUS Radeon RX 5700 XT 8G
0.71 MH/s

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with GIGABYTE AORUS Radeon RX 5700 XT 8G.

PowerColor Radeon RX 5700 XT Red Devil Limited Edition View
ASUS ROG Strix Radeon RX Vega 56 OC Gaming View
ASUS Dual GeForce RTX 2070 SUPER EVO OC View
XFX Radeon RX 5700 XT Thicc II Ultra View

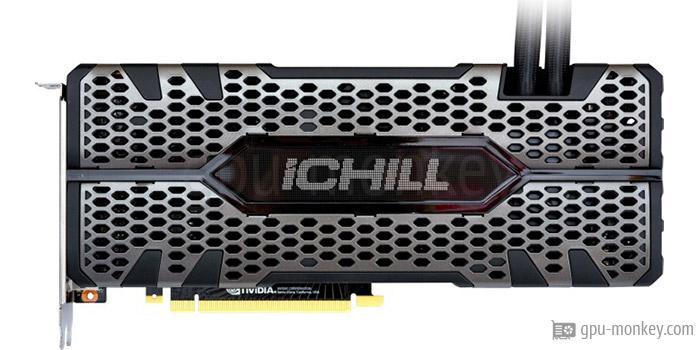

INNO3D GeForce RTX 2070 SUPER ICHILL BLACK View
PowerColor Radeon RX 5700 XT Red Devil View
GALAX GeForce RTX 2070 SUPER HOF 10th Anniversary Black Edition View
GALAX GeForce RTX 2070 SUPER HOF 10th Anniversary White Edition View

*

Base Clock - this is the guaranteed speed that the manufacturer sets for the type of cooling and binning that the GPU comes out of the factory with.

Boost Clock - this is a theoretical minimum speed to which the video card can be overclocked considering the cooling and binning requirements.
