ASUS EKWB GeForce RTX 3070

Graphics card ASUS EKWB GeForce RTX 3070, specifications and benchmarks

490 place in the overall ranking Graphics Cards!
It is a detailed review of ASUS EKWB GeForce RTX 3070, the date of manufacture started in Q4/2020. Here are all specifications and the results of performance in the form of modern benchmark estimations. The base clock frequency is 1.500 GHz. The GPU supports GDDR6 with an 8 GB graphics memory. TDP is 220 W. We recommend comparing the GPU with other models on our website to determine the best performance.

Specifications

Technical data
General info

Key features of the graphics card ASUS EKWB GeForce RTX 3070.

  • Based on
    NVIDIA GeForce RTX 3070
  • GPU Chip
    GA104-300-A1
  • Execution units
    46
  • Shader
    5888
  • Render Output Units
    96
  • Texture Units
    184
no data
Memory settings

The characteristics of the video memory on board the graphics card. The higher the better.

  • Memory Size
    8 GB
  • Memory Type
    GDDR6
  • Memory Speed
    1.75 GHz
  • Memory Bandwith
    448 GB/s
  • Memory Interface
    256 bit
no data
Clock frequency

Video card clock speed and overclocking potential ASUS EKWB GeForce RTX 3070.

  • Base Clock
    1.500 GHz
  • Boost Clock
    1.755 GHz+ 2 %
  • Avg (Game) Clock
    1.725 GHz
  • Overclocking
    Yes
* see below
Thermal Management

Connectors, the number of thermal watts emitted in normal mode and at overclocking.

  • TDP
    220 W
  • TDP (up)
    250 W+ 4 %
  • Tjunction max
    93 °C
  • PCIe-Power
    2 x 8-Pin
no data
Cooler & Fans type

Cooling system parameters, connectors and fan types ASUS EKWB GeForce RTX 3070.

  • Fan-Type
    --
  • Cooler-Type
    Water cooling
  • Fan 1
    --
  • Noise (Idle)
    0 dB / Silent
  • Fan 2
    --
  • Noise (Load)
    0 dB
no data
Interfaces

Connectivity and connections.

  • Max. Displays
    4
  • HDCP-Version
    2.3
  • HDMI Ports
    1x HDMI v2.1
  • DP Ports
    3x DP v1.4a
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical data

Hardware capabilities and maintaining the API.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    Yes
  • LED
    ASUS Aura Sync
no data
Supported Video Codecs

Built-in support for video and image compression standards.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode
  • AV1
    Decode
no data
Dimensions
  • Length
    209 mm
  • Height
    112 mm
  • Width
    22 mm
  • Width (Slots)
    1 PCIe-Slots
  • Weight
    --
no data
More information
  • GPU Interface
    PCIe 4.0 x 16
  • Release date
    Q4/2020
  • Release price
    779 $
  • Structure size
    8 nm
  • Part-no
    RTX3070-8G-EK
  • Documents
    data sheet
no data
Positions in all rankings

Common positions ASUS EKWB GeForce RTX 3070 GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    521 place
  • Battlefield 5
    625 place
  • Shadow of the Tomb Raider
    682 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    418 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    370 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    590 place
  • 3DMark Benchmark
    634 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    218 place

Benchmarks

Performance tests GPU

Compare the scores of popular benchmarks ASUS EKWB GeForce RTX 3070 with other graphics cards to understand the real speed of the GPU when processing content.

Tests include working with floating point, creating 3D models, mining cryptocurrencies.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
80 fps (avg)
80 fps (avg)
79 fps (avg)
ASUS EKWB GeForce RTX 3070
79 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
52 fps (avg)
52 fps (avg)
51 fps (avg)
ASUS EKWB GeForce RTX 3070
51 fps (avg)
ASUS GeForce RTX 3070 Noctua Edition LHR
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
Crypto-Mining Vertcoin Hashrate (MH/s)
VertCoin cryptocurrency can be mined on both Nvidia and AMD and is interesting because it mines perfectly on old GPUs like GTX1050, R9 290 and even GTX970

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with ASUS EKWB GeForce RTX 3070.

ASUS KO GeForce RTX 3070 View
ASUS TUF Gaming GeForce RTX 3070 View
ASUS Turbo GeForce RTX 3070 View
MSI GeForce RTX 3070 Ventus 2X 8G OC View
ASUS ROG Matrix GeForce RTX 2080 Ti Platinum View
ASUS ROG Strix GeForce RTX 3070 View

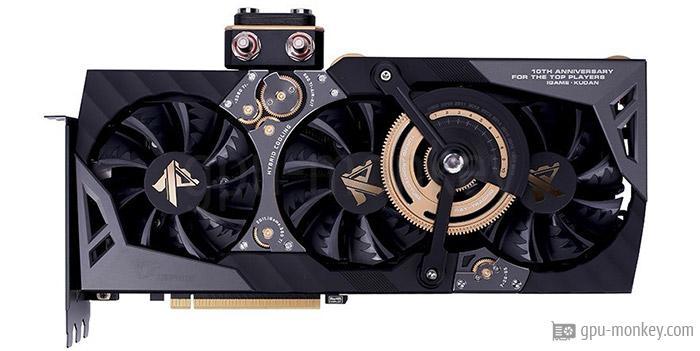

Colorful iGame GeForce RTX 2080 Ti Kudan-V View
ZOTAC GAMING GeForce RTX 2080 Ti AMP Extreme View

*

Base Clock - this is the guaranteed speed that the manufacturer sets for the type of cooling and binning that the GPU comes out of the factory with.

Boost Clock - this is a theoretical minimum speed to which the video card can be overclocked considering the cooling and binning requirements.
