ASRock Radeon RX 5700 Challenger D 8G OC

Graphics card ASRock Radeon RX 5700 Challenger D 8G OC, specifications and benchmarks

1536 place in the overall ranking Graphics Cards!
It is a detailed review of ASRock Radeon RX 5700 Challenger D 8G OC, the date of manufacture started in Q3/2019. Here are all specifications and the results of performance in the form of modern benchmark estimations. The base clock frequency is 1.515 GHz+ 3 %. The GPU supports GDDR6 with an 8 GB graphics memory. TDP is 180 W. We recommend comparing the GPU with other models on our website to determine the best performance.

Specifications

Technical data
General info

Key features of the graphics card ASRock Radeon RX 5700 Challenger D 8G OC.

  • Based on
    AMD Radeon RX 5700
  • GPU Chip
    Navi 10
  • Execution units
    36
  • Shader
    2304
  • Render Output Units
    64
  • Texture Units
    144
no data
Memory settings

The characteristics of the video memory on board the graphics card. The higher the better.

  • Memory Size
    8 GB
  • Memory Type
    GDDR6
  • Memory Speed
    1.75 GHz
  • Memory Bandwith
    448 GB/s
  • Memory Interface
    256 bit
no data
Clock frequency

Video card clock speed and overclocking potential ASRock Radeon RX 5700 Challenger D 8G OC.

  • Base Clock
    1.515 GHz+ 3 %
  • Boost Clock
    1.750 GHz+ 1 %
  • Avg (Game) Clock
    1.675 GHz+ 3 %
  • Overclocking
    Yes
* see below
Thermal Management

Connectors, the number of thermal watts emitted in normal mode and at overclocking.

  • TDP
    180 W
  • TDP (up)
    220 W
  • Tjunction max
    --
  • PCIe-Power
    2 x 8-Pin
no data
Cooler & Fans type

Cooling system parameters, connectors and fan types ASRock Radeon RX 5700 Challenger D 8G OC.

  • Fan-Type
    Axial
  • Cooler-Type
    Air cooling
  • Fan 1
    2 x 100 mm
  • Noise (Idle)
    0 dB / Silent
  • Fan 2
    --
  • Noise (Load)
    41 dB
no data
Interfaces

Connectivity and connections.

  • Max. Displays
    4
  • HDCP-Version
    2.3
  • HDMI Ports
    1x HDMI v2.0b
  • DP Ports
    3x DP v1.4
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical data

Hardware capabilities and maintaining the API.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    No
  • LED
    No LED lighting
no data
Supported Video Codecs

Built-in support for video and image compression standards.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode / Encode
  • AV1
    No
no data
Dimensions
  • Length
    281 mm
  • Height
    137 mm
  • Width
    42 mm
  • Width (Slots)
    2 PCIe-Slots
  • Weight
    --
no data
More information
  • GPU Interface
    PCIe 4.0 x 16
  • Release date
    Q3/2019
  • Release price
    439 $
  • Structure size
    7 nm
  • Part-no
    RX5700 CLD 8GO
  • Documents
    data sheet
no data
Positions in all rankings

Common positions ASRock Radeon RX 5700 Challenger D 8G OC GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    1758 place
  • Battlefield 5
    1735 place
  • Shadow of the Tomb Raider
    1743 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    735 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    1135 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    1932 place
  • 3DMark Benchmark
    1774 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    662 place

Benchmarks

Performance tests GPU

Compare the scores of popular benchmarks ASRock Radeon RX 5700 Challenger D 8G OC with other graphics cards to understand the real speed of the GPU when processing content.

Tests include working with floating point, creating 3D models, mining cryptocurrencies.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
8.08
8.08
8.06
ASRock Radeon RX 5700 Challenger D 8G OC
8.06
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
52 fps (avg)
52 fps (avg)
51 fps (avg)
ASRock Radeon RX 5700 Challenger D 8G OC
51 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
36 fps (avg)
36 fps (avg)
35 fps (avg)
ASRock Radeon RX 5700 Challenger D 8G OC
35 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
98 MH/s
98 MH/s
92 MH/s
ASRock Radeon RX 5700 Challenger D 8G OC
92 MH/s
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
17 MH/s
17 MH/s
16 MH/s
ASRock Radeon RX 5700 Challenger D 8G OC
16 MH/s
Crypto-Mining Vertcoin Hashrate (MH/s)
VertCoin cryptocurrency can be mined on both Nvidia and AMD and is interesting because it mines perfectly on old GPUs like GTX1050, R9 290 and even GTX970

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with ASRock Radeon RX 5700 Challenger D 8G OC.

XFX Radeon RX 5700 DD Ultra View
ASUS KO GeForce RTX 3060 V2 LHR View
GIGABYTE GeForce RTX 3060 Eagle OC 12G (rev. 2.0) LHR View
Sapphire Pulse Radeon RX 5700 8G View
ASRock Radeon RX 5700 Phantom Gaming D 8G OC View
ASUS TUF Gaming X3 Radeon RX 5700 OC Evo View
PowerColor Radeon RX 5700 Red Devil View

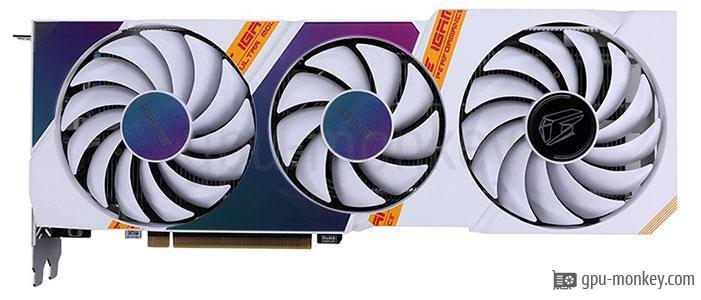

Colorful iGame GeForce RTX 3060 Ultra W OC 12G L-V LHR View

*

Base Clock - this is the guaranteed speed that the manufacturer sets for the type of cooling and binning that the GPU comes out of the factory with.

Boost Clock - this is a theoretical minimum speed to which the video card can be overclocked considering the cooling and binning requirements.
