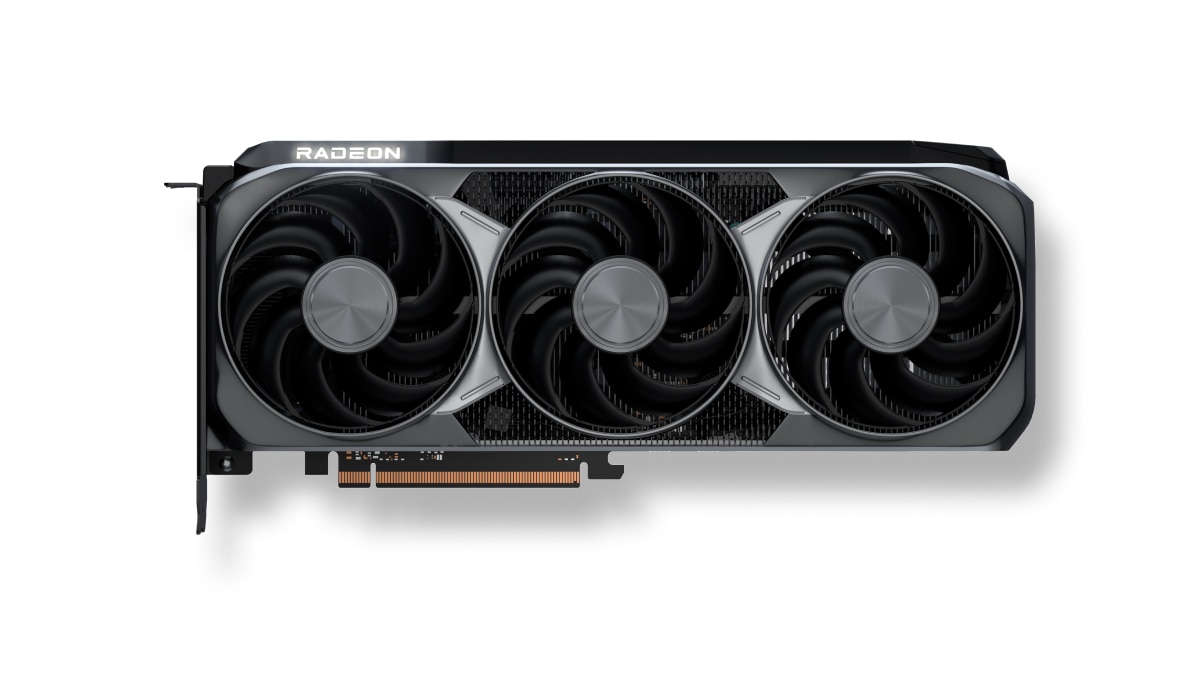

AMD Radeon RX 9070 XT

Graphics card AMD Radeon RX 9070 XT, Specifications

Specifications for AMD Radeon RX 9070 XT. Benchmark results are not available yet.

Specifications

Technical data

Official specifications

General info

Key features of the graphics card AMD Radeon RX 9070 XT.

  • Based on
    AMD Radeon RX 9070 XT
  • Architecture
    RDNA 4
  • Execution units
    64
  • Compute Units
    64
  • Shader
    4096
  • Render Output Units
    128
  • Ray Accelerators
    64
  • AI Accelerators
    128
Memory settings

The characteristics of the video memory on board the graphics card. The higher the better.

  • Memory Size
    16 GB
  • Memory Type
    GDDR6
  • Memory Bus
    256 bit
  • Memory Bandwidth
    640 GB/s
  • Memory Speed
    20 Gbps
  • Infinity Cache
    64 MB
Clock frequency

Video card clock speed and overclocking potential AMD Radeon RX 9070 XT.

  • Game Clock
    2400 MHz
  • Boost Clock
    2970 MHz
* see below
Thermal Management

Graphics card power limits and recommended system power supply.

  • Board power
    304 W
  • Required System Power
    750 W
  • Power Connectors
    2x8-Pin
Supported Video Codecs

Built-in support for video and image compression standards.

  • AV1
    Decode / Encode
Technical data

Hardware capabilities and maintaining the API.

  • Peak FP32 (theoretical)
    48.7 TFLOPS
More information
  • Official source
    https://www.amd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.html
  • Verified on
    2026-09-30
Positions in all rankings

Common positions AMD Radeon RX 9070 XT GPU in popular benchmarks, for comparison with other models.

No data

Benchmarks

Performance tests GPU

No benchmark results are available yet. This model is listed with specifications only.

Synonyms

Similar GPUs in terms of performance.

Similar in technical data graphics cards with AMD Radeon RX 9070 XT.

AMD Radeon RX 9070 View
AMD Radeon RX 9070 GRE View
AMD Radeon RX 9060 XT (16GB) View
AMD Radeon RX 9060 XT (8GB) View
Intel Arc B580 View
Intel Arc B570 View
AMD Radeon RX 7900 GRE View

*

Base Clock - this is the guaranteed speed that the manufacturer sets for the type of cooling and binning that the GPU comes out of the factory with.

Boost Clock - this is a theoretical minimum speed to which the video card can be overclocked considering the cooling and binning requirements.
