SAPPHIRE NITRO+ Radeon RX 9070 XT OC PhantomLink Edition 16GB

Specifications Benchmarks Synonyms

Specifications

Technical data

GPU

Based on
AMD Radeon RX 9070 XT
Board Manufacturer
Sapphire
Board Model
SAPPHIRE NITRO+ Radeon RX 9070 XT OC PhantomLink Edition 16GB
Board SKU
11348-08-20
Compute Units
64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
GPU Chip
AMD Radeon RX 9070 XT
Stream Processors
4096

Memory

Memory Bus
256 bit
Memory Data Rate
20 Gbps Effective
Memory Size
16 GB
Memory Type
GDDR6

Clock Speeds

Boost Clock
Up to 3060 MHz
Game Clock
Up to 2520 MHz

Thermal Design

Total Board Power
330W Typical Board Power

Connectivity

DisplayPort Ports
2 × DisplayPort 2.1a
HDMI Ports
2 × HDMI 2.1b
PCIe Interface
PCIe 5.0 x16

Dimensions

Form Factor
3.2 slot, ATX Dimension: 330.8(L)X 141.25(W)X 65.68 (H)mm

Positions in all rankings

Common positions SAPPHIRE NITRO+ Radeon RX 9070 XT OC PhantomLink Edition 16GB GPU in popular benchmarks, for comparison with other models.

No data

Manufacturer versions

Board specifications and benchmark results are specific to each version.

ASRock Radeon RX 9070 XT Taichi 16GB OC

ASRock · 16 GB

ASUS Prime Radeon RX 9070 XT White OC Edition 16GB GDDR6

ASUS · 16 GB

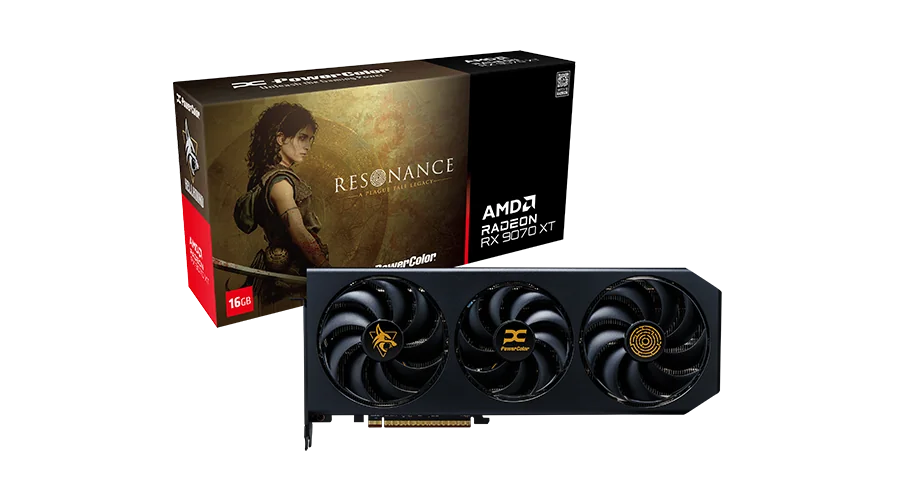

PowerColor Hellhound AMD Radeon RX 9070 XT 16GB GDDR6 Resonance Edition

PowerColor · 16 GB

PowerColor Hellhound AMD Radeon RX 9070 XT 16GB GDDR6 Reva Edition

PowerColor · 16 GB

PowerColor Hellhound Radeon RX 9070 XT 16GB OC

PowerColor · 16 GB

SAPPHIRE NITRO+ Radeon RX 9070 XT OC 16GB

Sapphire · 16 GB

SAPPHIRE NITRO+ Radeon RX 9070 XT OC Crimson Desert Edition 16GB

Sapphire · 16 GB

SAPPHIRE NITRO+ Radeon RX 9070 XT OC PhantomLink Polar Edition 16GB

Sapphire · 16 GB

SAPPHIRE NITRO+ Radeon RX 9070 XT OC Valor Mortis Edition 16GB

Sapphire · 16 GB

SAPPHIRE PULSE Radeon RX 9070 XT 16GB

Sapphire · 16 GB

SAPPHIRE PURE Radeon RX 9070 XT OC 16GB

Sapphire · 16 GB

All models based on this GPU

Benchmarks

Performance tests GPU

Published results: 24

Game frame rates

Each row uses one game, resolution, test suite and graphics mode.

Test and settings	SAPPHIRE NITRO+ Radeon RX 9070 XT OC PhantomLink Edition 16GB
ComputerBase GPU suite 2026 / Alan Wake 2 / 2560x1440 / Maximale Grafikdetails / DLSS/FSR Quality / RT off	83.5 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 2 QualityDriver: 26.3.1
ComputerBase GPU suite 2026 / Alan Wake 2 / 2560x1440 / Maximale Grafikdetails / DLSS/FSR Quality / RT on	56.7 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 2 QualityDriver: 26.3.1
ComputerBase GPU suite 2026 / Alan Wake 2 / 3440x1440 / Maximale Grafikdetails / DLSS/FSR Quality / RT off	69.7 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 2 QualityDriver: 26.3.1
ComputerBase GPU suite 2026 / Alan Wake 2 / 3440x1440 / Maximale Grafikdetails / DLSS/FSR Quality / RT on	46.9 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 2 QualityDriver: 26.3.1
ComputerBase GPU suite 2026 / Alan Wake 2 / 3840x2160 / Maximale Grafikdetails / DLSS/FSR Quality / RT off	53 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 2 QualityDriver: 26.3.1
ComputerBase GPU suite 2026 / Alan Wake 2 / 3840x2160 / Maximale Grafikdetails / DLSS/FSR Quality / RT on	33.9 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 2 QualityDriver: 26.3.1
ComputerBase GPU suite 2026 / Anno 117 / 2560x1440 / Ultra-Hoch-Preset / DLSS/FSR Quality / RT off	93 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 QualityDriver: 26.3.1
ComputerBase GPU suite 2026 / Anno 117 / 2560x1440 / Ultra-Hoch-Preset / DLSS/FSR Quality / RT on	72.4 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 QualityDriver: 26.3.1
ComputerBase GPU suite 2026 / Anno 117 / 3440x1440 / Ultra-Hoch-Preset / DLSS/FSR Quality / RT off	81.5 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 QualityDriver: 26.3.1
ComputerBase GPU suite 2026 / Anno 117 / 3440x1440 / Ultra-Hoch-Preset / DLSS/FSR Quality / RT on	62.6 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 QualityDriver: 26.3.1
ComputerBase GPU suite 2026 / Anno 117 / 3840x2160 / Ultra-Hoch-Preset / DLSS/FSR Quality / RT off	60.7 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 QualityDriver: 26.3.1
ComputerBase GPU suite 2026 / Anno 117 / 3840x2160 / Ultra-Hoch-Preset / DLSS/FSR Quality / RT on	45 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 QualityDriver: 26.3.1

More tests: 12

Test and settings	SAPPHIRE NITRO+ Radeon RX 9070 XT OC PhantomLink Edition 16GB
ComputerBase GPU suite 2026 / ARC Raiders / 2560x1440 / Episch-Preset / DLSS/FSR Native / RT off	107.8 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 NativeDriver: 26.3.1
ComputerBase GPU suite 2026 / ARC Raiders / 2560x1440 / Episch-Preset / DLSS/FSR Native / RT on	88 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 NativeDriver: 26.3.1
ComputerBase GPU suite 2026 / ARC Raiders / 3440x1440 / Episch-Preset / DLSS/FSR Native / RT off	87.9 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 NativeDriver: 26.3.1
ComputerBase GPU suite 2026 / ARC Raiders / 3440x1440 / Episch-Preset / DLSS/FSR Native / RT on	73.3 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 NativeDriver: 26.3.1
ComputerBase GPU suite 2026 / ARC Raiders / 3840x2160 / Episch-Preset / DLSS/FSR Native / RT off	59.9 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 NativeDriver: 26.3.1
ComputerBase GPU suite 2026 / ARC Raiders / 3840x2160 / Episch-Preset / DLSS/FSR Native / RT on	50.8 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 NativeDriver: 26.3.1
ComputerBase GPU suite 2026 / Assassin's Creed Shadows / 2560x1440 / Extrem-Hoch-Preset / DLSS/FSR Quality / RT off	73.3 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 QualityDriver: 26.3.1
ComputerBase GPU suite 2026 / Assassin's Creed Shadows / 2560x1440 / Extrem-Hoch-Preset / DLSS/FSR Quality / RT on	62.8 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 QualityDriver: 26.3.1
ComputerBase GPU suite 2026 / Assassin's Creed Shadows / 3440x1440 / Extrem-Hoch-Preset / DLSS/FSR Quality / RT off	67.4 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 QualityDriver: 26.3.1
ComputerBase GPU suite 2026 / Assassin's Creed Shadows / 3440x1440 / Extrem-Hoch-Preset / DLSS/FSR Quality / RT on	54.9 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 QualityDriver: 26.3.1
ComputerBase GPU suite 2026 / Assassin's Creed Shadows / 3840x2160 / Extrem-Hoch-Preset / DLSS/FSR Quality / RT off	59.5 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 QualityDriver: 26.3.1
ComputerBase GPU suite 2026 / Assassin's Creed Shadows / 3840x2160 / Extrem-Hoch-Preset / DLSS/FSR Quality / RT on	46.6 FPS Base GPU test: AMD Radeon RX 9070 XT Rendering: FSR 4.1 QualityDriver: 26.3.1

A base GPU test is a reference for cards using that GPU and the same memory capacity. Board overclocking, cooling and power limits can change the result.

Comparable benchmark results are required to suggest performance alternatives.

Base Clock is the base GPU frequency stated by the manufacturer for this model.

Boost Clock describes automatic frequency increases. Actual clock speed varies with workload, temperature and power limits; it is not a guarantee of manual overclocking.
