User rating

Released
2025-06-05

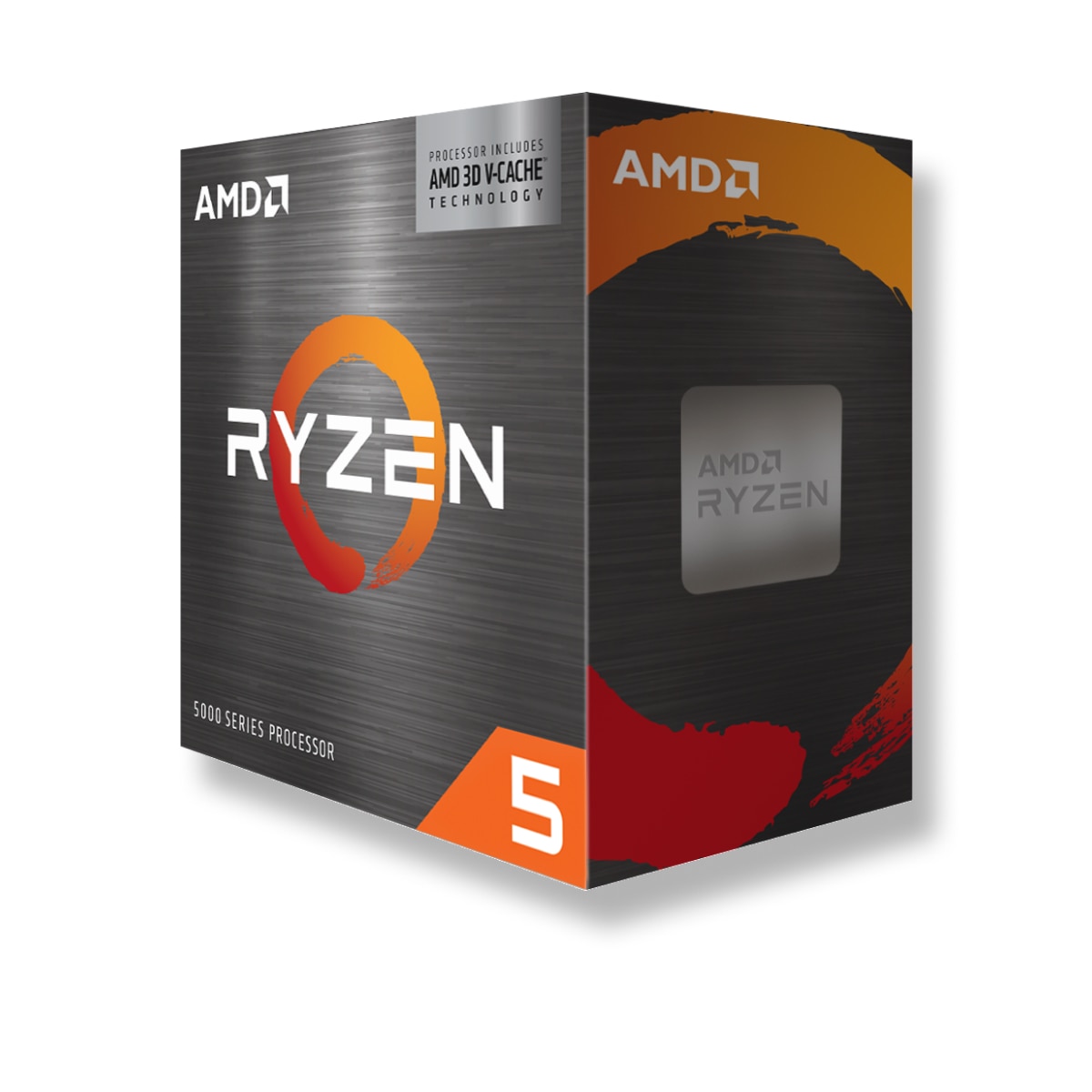

AMD Ryzen 5 5500X3D

Family illustration.

Processor AMD Ryzen 5 5500X3D, specifications and benchmarks

AMD Ryzen 5 5500X3D Processor is being reviewed, the release of which was held in 2025-06-05. Here are all the AMD Ryzen 5 5500X3D’s specifications and performance estimation in benchmark. We offer to study all the data and compare it with a competing model. The base clock frequency of the model is 3 GHz, total of cores is 6 / 12. The CPU supports DDR4 and is installed in the motherboard on Socket AM4. The TDP for CPU is 105 W.

Specifications Benchmarks Synonyms

Specifications

Technical data

CPU generation and family

Family
Ryzen
Form Factor
Desktops / Boxed Processor
Name
AMD Ryzen 5 5500X3D
Segment
Desktop
Series
Ryzen 5000 Series

CPU Cores and Base Frequency

Base Frequency
3 GHz
CPU Cores
6
CPU Threads
12
Max. Boost Clock
4 GHz

Internal Graphics

GPU name
None

Memory & PCIe

Memory channels
2
Memory type
DDR4
PCIe
PCIe 4.0
System Memory Specification
3200

Thermal Management

Default TDP
105 W
Maximum Operating Temperature
90 °C

Technical details

Codename
Vermeer
L2-Cache
3 MB
L3-Cache
96 MB
Release date
2025-06-05
Socket
AM4
Technology
TSMC 7nm FinFET

Positions in all rankings

Common positions AMD Ryzen 5 5500X3D CPU in popular benchmarks, for comparison with other models.

No data

Benchmarks

Performance tests CPU

Published results: 1

Blender Cycles

Each row uses one Blender version, operating system and compute backend.

Test and settings	AMD Ryzen 5 5500X3D
Blender 4.5.0 / CPU / Windows	144.451295 samples/min Submissions: 6

Comparable benchmark results are required to suggest performance alternatives.

*

PL1 is the sustained processor power limit; PL2 is the short-term turbo power limit. They are not measured performance or efficiency.

The values are used to select the optimal cooling system and power supply.
