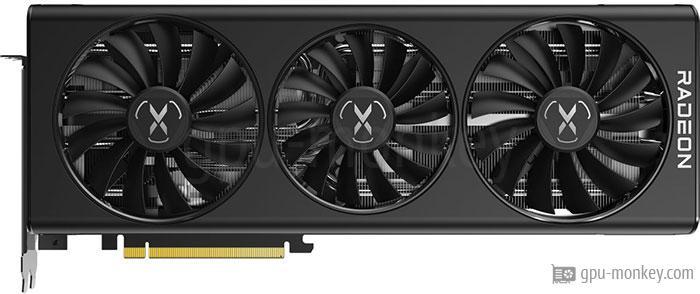

AMD Radeon RX 6800 XT

Karta graficzna AMD Radeon RX 6800 XT, specyfikacje i wzorce

374 miejsce w rankingu ogólnym Karty graficzne (GPU)!
Szczegółowy przegląd karty wideo AMD Radeon RX 6800 XT, której data produkcji rozpoczęła się 2020-11-18. Przedstawione są tutaj wszystkie specyfikacje techniczne, a także wyniki wydajności w postaci szacunków z nowoczesnych benchmarków. Początkowa częstotliwość zegara 1.825 GHz. Karta wideo obsługuje GDDR6 i posiada na pokładzie pamięć wideo 16 GB. TDP wynosi 300 W. Zalecamy porównanie GPU z innymi modelami na naszej stronie internetowej w celu określenia najlepszej wydajności.

Specyfikacje

Dane techniczne
GPU
  • Na podstawie
    AMD Radeon RX 6800 XT
  • Compute Units
    72
  • Execution Units
    72
  • Układ GPU
    Navi 21 XT
  • Ray Accelerators
    72
  • Jednostki wyjściowe renderingu
    128
  • Shader
    4608
  • Jednostki tekstury
    288
Pamięć
  • Infinity Cache
    128 MB
  • Memory Bandwidth
    512 GB/s
  • Memory Bus
    256 bit
  • Memory Data Rate
    16 Gbps
  • Rozmiar pamięci
    16 GB
  • Memory Speed (legacy frequency label)
    2000 MHz
  • Typ pamięci
    GDDR6
Częstotliwość zegara
  • Częstotliwość podstawowa
    1825 MHz
  • Maksymalna częstotliwość
    2250 MHz
  • Game Clock
    2015 MHz
  • Overclocking
    Tak
Zużycie energii
  • Maximum Junction Temperature
    96 °C
  • System Power Supply
    750 W (System power requirement)
  • TDP
    300 W
  • TDP (up)
    345 W
  • Typical Board Power
    300 W
Chłodzenie
  • Cooler-Type
    Air cooling
  • Fan-Type
    Axial
  • Wentylator 1
    3 x 80 mm
  • Wentylator 2
    —
  • Noise (Idle)
    0 dB / Silent
  • Noise (Load)
    37 dB
Łączność
  • DisplayPort Ports
    2 × DisplayPort 1.4a
  • Porty DVI
    —
  • HDCP Version
    2.3
  • Porty HDMI
    1 × HDMI 2.1
  • HDMI Version
    HDMI 2.1 VRR and FRL
  • Max. Wyświetlacze
    4
  • PCIe Interface
    PCIe 4.0 x16
  • Power Connectors
    2x8-Pin
  • USB-C Ports
    1 × USB-C
  • VGA Ports
    —
Zestaw funkcji
  • DirectX
    12_2
  • DLSS / FSR
    Nie
  • LED
    Non addressable LED
  • Maks. rozdzielczość
    7680 × 4320
  • Raytracing
    Tak
Obsługiwane kodeki wideo
  • AV1
    Decode
  • h264
    Decode / Encode
  • h265 / HEVC
    Decode / Encode
  • VP8
    Decode / Encode
  • VP9
    Decode / Encode
Wymiary
  • Wysokość
    120 mm
  • Długość
    270 mm
  • Slot Size
    3 PCIe-Slots
  • Weight
    1503 g
  • Width
    —
Dane dodatkowe
  • specyfikacja
    —
  • Launch Price (historical)
    799 $
  • Official source
    https://www.amd.com/en/products/graphics/desktops/radeon/6000-series/amd-radeon-rx-6800-xt.html
  • Part Number
    —
  • Process Technology
    7 nm
  • Data wydania
    2020-11-18
  • Verification scope
    Explicit manufacturer fields refreshed; other original historical fields retained, not all reverified. Partial composite conflicts are preserved.
  • Verified on
    2026-09-30
Pozycje we wszystkich rankingach

Wspólne stanowiska AMD Radeon RX 6800 XT GPU w popularnych benchmarkach, dla porównania z innymi modelami.

  • FP32 Performance (Single-precision TFLOPS)
    548 place
  • 3DMark Benchmark
    382 place
  • Battlefield 5
    378 place
  • Shadow of the Tomb Raider
    412 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    330 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    731 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    455 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    317 place

Manufacturer versions

Board specifications and benchmark results are specific to each version.

All models based on this GPU

Blender Open Data

Official median of community submissions; higher is better. Blender versions, operating systems and compute backends remain separate.

Snapshot date is the retrieval date, not the measurement date. Individual dates, RAM, drivers and power limits are unknown. This aggregates different user systems; it is not a test of a specific partner board and is excluded from the legacy composite index.

Benchmarki

Badania eksploatacyjne GPU

Porównaj wyniki popularnych benchmarków AMD Radeon RX 6800 XT z innymi kartami graficznymi, aby zrozumieć rzeczywistą szybkość działania GPU podczas przetwarzania treści.

Testy obejmują pracę ze zmiennoprzecinkową, tworzenie modeli 3D, wydobywanie kryptowalut.

These are saved results from the earlier catalog. Measurement dates and test configurations were not recorded. Models with no comparable results are omitted.

Recent models: test results with identified primary sources — Game frame rates

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 to 32-bitowe obliczenia zmiennoprzecinkowe dla GPU, które są wymagane w grach 3D.

Higher values are better in this metric.

3DMark Benchmark
3DMark jest przeznaczony dla graczy, overclockerów i twórców systemów, którzy chcą w pełni wykorzystać możliwości swojego sprzętu.

Higher values are better in this metric.

Battlefield 5
Battlefield 5 to realistyczna gra, z wbudowanym benchmarkiem, bardzo dobrze nadająca się jako test dla kart graficznych.

Higher values are better in this metric.

Shadow of the Tomb Raider
Shadow of the Tomb Raider posiada wbudowany benchmark, oparty na silniku Crystal Dynamics Foundation.

Higher values are better in this metric.

Crypto-Mining Ethereum Hashrate (MH/s)
Ethash to algorytm wydobywania kryptowaluty Ethereum, który w pełni wykorzystuje możliwości procesora graficznego.

Higher values are better in this metric.

Crypto-Mining Ergo Hashrate (MH/s)
Algorytm Autolykos, na którym oparta jest kryptowaluta Ergo, pozwala na wykorzystanie do wydobycia nie tylko nowoczesnych procesorów graficznych, ale także procesorów poprzedniej generacji.

Higher values are better in this metric.

Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate wydobycia kryptowaluty Ravencoin na algorytmie KawPoW jest najszybszy na nowoczesnych kartach graficznych.

Higher values are better in this metric.

Crypto-Mining Vertcoin Hashrate (MH/s)
Kryptowaluta VertCoin może być wydobywana zarówno na układach Nvidia, jak i AMD i jest interesująca, ponieważ doskonale radzi sobie na starych kartach graficznych, takich jak GTX1050, R9 290, a nawet GTX970.

Higher values are better in this metric.

Synonimy

Nearby models in the composite benchmark index.

These are saved results from the earlier catalog. Measurement dates and test configurations were not recorded. Models with no comparable results are omitted. Index 0–100: equal-weight mean of each score relative to the best saved score among models with both tests. Tests: Battlefield 5 + Shadow of the Tomb Raider. This index does not predict performance in every workload.

Recent models: test results with identified primary sources — Game frame rates

ASUS Radeon RX 6800 XT ASUS Radeon RX 6800 XT Zobacz
GIGABYTE Radeon RX 6800 XT GIGABYTE Radeon RX 6800 XT Zobacz
GIGABYTE Radeon RX 6800 XT Gaming 16G GIGABYTE Radeon RX 6800 XT Gaming 16G Zobacz
MSI Radeon RX 6800 XT MSI Radeon RX 6800 XT Zobacz
MSI Radeon RX 6800 XT Gaming X Trio 16G MSI Radeon RX 6800 XT Gaming X Trio 16G Zobacz
GIGABYTE Radeon RX 6800 XT Gaming OC 16G GIGABYTE Radeon RX 6800 XT Gaming OC 16G Zobacz
MSI Radeon RX 6800 XT Gaming Z Trio 16G MSI Radeon RX 6800 XT Gaming Z Trio 16G Zobacz
Sapphire Pulse Radeon RX 6800 XT Sapphire Pulse Radeon RX 6800 XT Zobacz

*

Base Clock is the base GPU frequency stated by the manufacturer for this model.

Boost Clock describes automatic frequency increases. Actual clock speed varies with workload, temperature and power limits; it is not a guarantee of manual overclocking.
