SAPPHIRE PULSE Radeon RX 6500 XT 4GB (SKU 11314-07-20G) — Specifications, performance, tests

Specifications Benchmarks Synonyms

Specifications

Technical data

GPU

Based on
AMD Radeon RX 6500 XT
Board Manufacturer
Sapphire
Board Model
SAPPHIRE PULSE Radeon RX 6500 XT 4GB (SKU 11314-07-20G)
Board SKU
11314-07-20G
Stream Processors
1024

Memory

Memory Data Rate
18 Gbps Effective
Memory Size
4 GB
Memory Type
GDDR6

Clock Speeds

Boost Clock
Up to 2825 MHz
Game Clock
Up to 2685 MHz

Thermal Design

System Power Supply
400 W (System power requirement)
Total Board Power
130W (Board Power)

Connectivity

DisplayPort Ports
1 × DisplayPort
HDMI Ports
1 × HDMI
PCIe Interface
PCIe 4.0 x4

Dimensions

Form Factor
2 slot, ATX Dimension: 194(L)X 107(W)X 40(H)mm

Positions in all rankings

Common positions SAPPHIRE PULSE Radeon RX 6500 XT 4GB (SKU 11314-07-20G) GPU in popular benchmarks, for comparison with other models.

No data

Manufacturer versions

Board specifications and benchmark results are specific to each version.

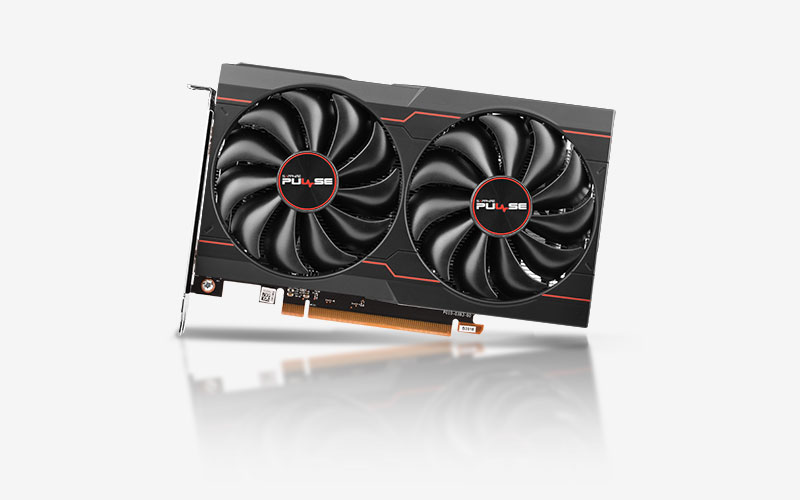

SAPPHIRE PULSE Radeon RX 6500 XT 4GB (SKU 11314-01-20G)

Sapphire · 4 GB

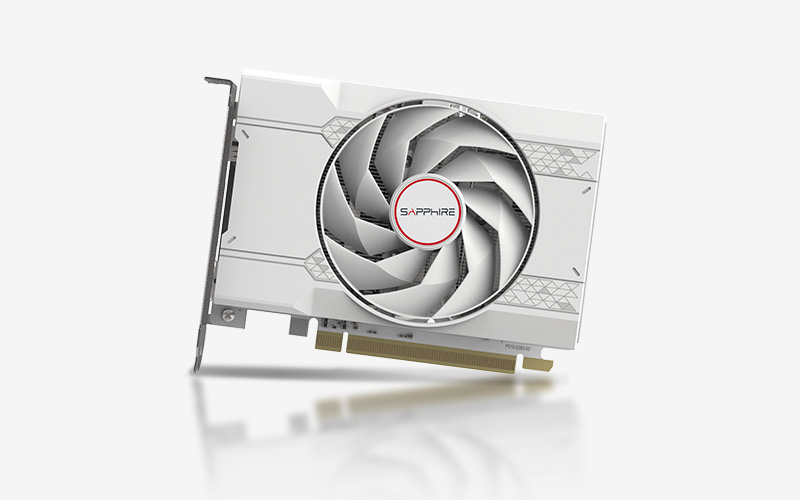

SAPPHIRE PULSE Radeon RX 6500 XT ITX PURE 4GB

Sapphire · 4 GB

All models based on this GPU

Benchmarks

Performance tests GPU

Published results: 10

Game frame rates

Each row uses one game, resolution, test suite and graphics mode.

Test and settings	SAPPHIRE PULSE Radeon RX 6500 XT 4GB (SKU 11314-07-20G)
Counter-Strike 2 / 1920x1080 / High / Native / RT off	166.7 FPS Base GPU test: RX 6500 XT 4 GB, 107 W VRAM: 4 GBTest CPU: AMD Ryzen 9 7900System RAM: 32 GB DDR5-5200CL38OS: Windows 11Rendering: Native (no FSR/DLSS)Driver: 24.1.1
Cyberpunk 2077 / 1920x1080 / High / Native / RT off	23.5 FPS Base GPU test: RX 6500 XT 4 GB, 107 W VRAM: 4 GBTest CPU: AMD Ryzen 9 7900System RAM: 32 GB DDR5-5200CL38OS: Windows 11Rendering: Native (no FSR/DLSS)Game build: Phantom Liberty / Patch 2.11Driver: 24.1.1
Diablo IV / 1920x1080 / Medium / Native / RT off	83 FPS Base GPU test: RX 6500 XT 4 GB, 107 W VRAM: 4 GBTest CPU: AMD Ryzen 9 7900System RAM: 32 GB DDR5-5200CL38OS: Windows 11Rendering: Native (no FSR/DLSS)Driver: 24.1.1
Dota 2 / 1920x1080 / Maximum / Native / RT off	171.1 FPS Base GPU test: RX 6500 XT 4 GB, 107 W VRAM: 4 GBTest CPU: AMD Ryzen 9 7900System RAM: 32 GB DDR5-5200CL38OS: Windows 11Graphics API: DirectX 11Rendering: Native (no FSR/DLSS)Driver: 24.1.1
F1 23 / 1920x1080 / High / 16x AF / TAA + FidelityFX Sharpening / Native / RT off	48.2 FPS Base GPU test: RX 6500 XT 4 GB, 107 W VRAM: 4 GBTest CPU: AMD Ryzen 9 7900System RAM: 32 GB DDR5-5200CL38OS: Windows 11Rendering: Native (no FSR/DLSS)Driver: 24.1.1
Baldur's Gate 3 / 1920x1080 / Ultra / Native / RT off	10.4 FPS Base GPU test: RX 6500 XT 4 GB, 107 W VRAM: 4 GBTest CPU: AMD Ryzen 9 7900System RAM: 32 GB DDR5-5200CL38OS: Windows 11Graphics API: VulkanRendering: Native (no FSR/DLSS)Driver: 24.1.1
Ratchet & Clank / 1920x1080 / High / TAA / Native / RT off	25.2 FPS Base GPU test: RX 6500 XT 4 GB, 107 W VRAM: 4 GBTest CPU: AMD Ryzen 9 7900System RAM: 32 GB DDR5-5200CL38OS: Windows 11Rendering: Native (no FSR/DLSS)Driver: 24.1.1

3DMark graphics tests

Each row is a separate graphics subtest. Scores are not game FPS.

Test and settings	SAPPHIRE PULSE Radeon RX 6500 XT 4GB (SKU 11314-07-20G)
3DMark Time Spy	5043 points Base GPU test: RX 6500 XT 4 GB, 107 W VRAM: 4 GBTest CPU: AMD Ryzen 9 7900System RAM: 32 GB DDR5-5200CL38OS: Windows 11Driver: 24.1.1Application version unreported
3DMark Speed Way	206 points Base GPU test: RX 6500 XT 4 GB, 107 W VRAM: 4 GBTest CPU: AMD Ryzen 9 7900System RAM: 32 GB DDR5-5200CL38OS: Windows 11Driver: 24.1.1Application version unreported
3DMark Port Royal	540 points Base GPU test: RX 6500 XT 4 GB, 107 W VRAM: 4 GBTest CPU: AMD Ryzen 9 7900System RAM: 32 GB DDR5-5200CL38OS: Windows 11Driver: 24.1.1Application version unreported

A base GPU test is a reference for cards using that GPU and the same memory capacity. Board overclocking, cooling and power limits can change the result.

Comparable benchmark results are required to suggest performance alternatives.

Base Clock is the base GPU frequency stated by the manufacturer for this model.

Boost Clock describes automatic frequency increases. Actual clock speed varies with workload, temperature and power limits; it is not a guarantee of manual overclocking.
