Sapphire Pulse Radeon RX 590 8G G5
Select video card 2
Overall score
star star star star star
Released
Q4/2018
Sapphire Pulse Radeon RX 590 8G G5

Graphics card Sapphire Pulse Radeon RX 590 8G G5, specifications and benchmarks

2383 place in the overall ranking Graphics Cards!
It is a detailed review of Sapphire Pulse Radeon RX 590 8G G5, the date of manufacture started in Q4/2018. Here are all specifications and the results of performance in the form of modern benchmark estimations. The base clock frequency is 1.469 GHz. The GPU supports GDDR5 with an 8 GB graphics memory. TDP is 225 W. We recommend comparing the GPU with other models on our website to determine the best performance.

Specifications

Technical data
General info

Key features of the graphics card Sapphire Pulse Radeon RX 590 8G G5.

  • Based on
    AMD Radeon RX 590
  • GPU Chip
    Polaris 30
  • Execution units
    36
  • Shader
    2304
  • Render Output Units
    32
  • Texture Units
    144
no data
Memory settings

The characteristics of the video memory on board the graphics card. The higher the better.

  • Memory Size
    8 GB
  • Memory Type
    GDDR5
  • Memory Speed
    2 GHz
  • Memory Bandwith
    256 GB/s
  • Memory Interface
    256 bit
no data
Clock frequency

Video card clock speed and overclocking potential Sapphire Pulse Radeon RX 590 8G G5.

  • Base Clock
    1.469 GHz
  • Boost Clock
    1.545 GHz
  • Overclocking
    Yes
* see below
Thermal Management

Connectors, the number of thermal watts emitted in normal mode and at overclocking.

  • TDP
    225 W
  • TDP (up)
    235 W
  • Tjunction max
    --
  • PCIe-Power
    1 x 8-Pin
no data
Cooler & Fans type

Cooling system parameters, connectors and fan types Sapphire Pulse Radeon RX 590 8G G5.

  • Fan-Type
    Axial
  • Cooler-Type
    Air cooling
  • Fan 1
    2 x 95 mm
  • Noise (Idle)
    --
  • Fan 2
    --
  • Noise (Load)
    --
no data
Interfaces

Connectivity and connections.

  • Max. Displays
    4
  • HDCP-Version
    2.2
  • HDMI Ports
    2x HDMI v2.0b
  • DP Ports
    2x DP v1.4
  • DVI Ports
    1
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical data

Hardware capabilities and maintaining the API.

  • Max. resolution
    7680x4320
  • DirectX
    12
  • Raytracing
    No
  • DLSS / FSR
    No
  • LED
    No LED lighting
no data
Supported Video Codecs

Built-in support for video and image compression standards.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode
  • AV1
    No
no data
Dimensions
  • Length
    230 mm
  • Height
    125 mm
  • Width
    40 mm
  • Width (Slots)
    2 PCIe-Slots
  • Weight
    --
no data
More information
  • GPU Interface
    PCIe 3.0 x 16
  • Release date
    Q4/2018
  • Release price
    --
  • Structure size
    14 nm
  • Part-no
    11289-06
  • Documents
    data sheet
no data
Positions in all rankings

Common positions Sapphire Pulse Radeon RX 590 8G G5 GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    1994 place
  • Battlefield 5
    2357 place
  • Shadow of the Tomb Raider
    2310 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    2243 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    1827 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    2279 place

Benchmarks

Performance tests GPU

Compare the scores of popular benchmarks Sapphire Pulse Radeon RX 590 8G G5 with other graphics cards to understand the real speed of the GPU when processing content.

Tests include working with floating point, creating 3D models, mining cryptocurrencies.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
41 fps (avg)
41 fps (avg)
40 fps (avg)
Sapphire Pulse Radeon RX 590 8G G5
40 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
25 fps (avg)
25 fps (avg)
24 fps (avg)
Sapphire Pulse Radeon RX 590 8G G5
24 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
76 MH/s
76 MH/s
74 MH/s
Sapphire Pulse Radeon RX 590 8G G5
74 MH/s
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with Sapphire Pulse Radeon RX 590 8G G5.

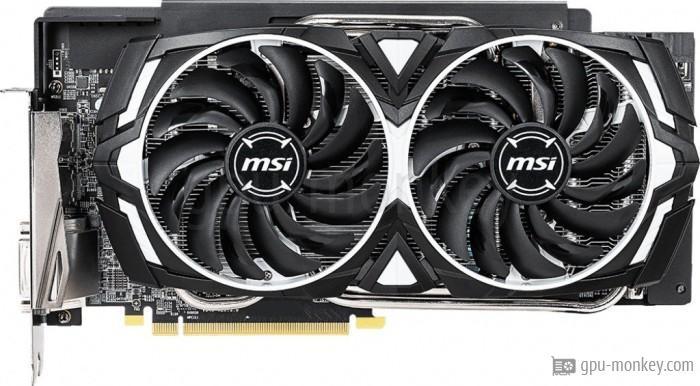

MSI Radeon RX 590 Armor 8G View
XFX AMD Radeon RX 570 RS 8GB Black Edition View

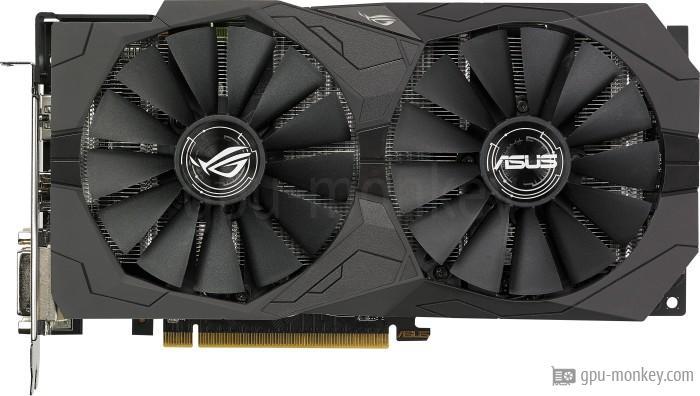

ASUS ROG Strix Radeon RX 570 OC 4G View
ASUS ROG Strix Radeon RX 570 OC 8G View
GIGABYTE GeForce GTX 1660 SUPER GAMING 6G View

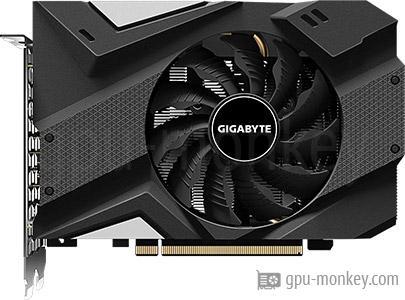

GIGABYTE GeForce GTX 1660 SUPER MINI ITX 6G View
PNY GeForce GTX 1660 SUPER 6GB Blower View

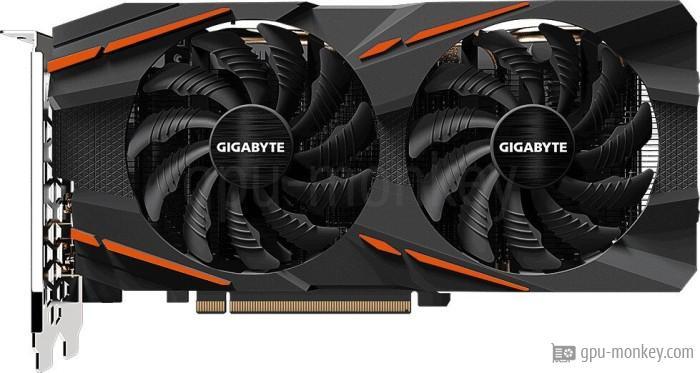

GIGABYTE Radeon RX 590 Gaming 8G View

*

Base Clock - this is the guaranteed speed that the manufacturer sets for the type of cooling and binning that the GPU comes out of the factory with.

Boost Clock - this is a theoretical minimum speed to which the video card can be overclocked considering the cooling and binning requirements.
