MANLI GeForce RTX 3070 Gallardo (M2502)
Select video card 2
Overall score
star star star star star
Released
Q4/2020
MANLI GeForce RTX 3070 Gallardo (M2502)

Graphics card MANLI GeForce RTX 3070 Gallardo (M2502), specifications and benchmarks

522 place in the overall ranking Graphics Cards!
It is a detailed review of MANLI GeForce RTX 3070 Gallardo (M2502), the date of manufacture started in Q4/2020. Here are all specifications and the results of performance in the form of modern benchmark estimations. The base clock frequency is 1.500 GHz. The GPU supports GDDR6 with an 8 GB graphics memory. TDP is 220 W. We recommend comparing the GPU with other models on our website to determine the best performance.

Specifications

Technical data
General info

Key features of the graphics card MANLI GeForce RTX 3070 Gallardo (M2502).

  • Based on
    NVIDIA GeForce RTX 3070
  • GPU Chip
    GA104-300-A1
  • Execution units
    46
  • Shader
    5888
  • Render Output Units
    96
  • Texture Units
    184
no data
Memory settings

The characteristics of the video memory on board the graphics card. The higher the better.

  • Memory Size
    8 GB
  • Memory Type
    GDDR6
  • Memory Speed
    1.75 GHz
  • Memory Bandwith
    448 GB/s
  • Memory Interface
    256 bit
no data
Clock frequency

Video card clock speed and overclocking potential MANLI GeForce RTX 3070 Gallardo (M2502).

  • Base Clock
    1.500 GHz
  • Boost Clock
    1.740 GHz+ 1 %
  • Overclocking
    Yes
* see below
Thermal Management

Connectors, the number of thermal watts emitted in normal mode and at overclocking.

  • TDP
    220 W
  • TDP (up)
    --
  • Tjunction max
    93 °C
  • PCIe-Power
    2 x 8-Pin
no data
Cooler & Fans type

Cooling system parameters, connectors and fan types MANLI GeForce RTX 3070 Gallardo (M2502).

  • Fan-Type
    Axial
  • Cooler-Type
    Air cooling
  • Fan 1
    2 x 100 mm
  • Noise (Idle)
    0 dB / Silent
  • Fan 2
    --
  • Noise (Load)
    --
no data
Interfaces

Connectivity and connections.

  • Max. Displays
    4
  • HDCP-Version
    2.3
  • HDMI Ports
    1x HDMI v2.1
  • DP Ports
    3x DP v1.4a
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical data

Hardware capabilities and maintaining the API.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    Yes
  • LED
    No LED lighting
no data
Supported Video Codecs

Built-in support for video and image compression standards.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode
  • AV1
    Decode
no data
Dimensions
  • Length
    252 mm
  • Height
    126 mm
  • Width
    57 mm
  • Width (Slots)
    3 PCIe-Slots
  • Weight
    --
no data
More information
  • GPU Interface
    PCIe 4.0 x 16
  • Release date
    Q4/2020
  • Release price
    --
  • Structure size
    8 nm
  • Part-no
    M-NRTX3070G/6RGHPPP-M2502
  • Documents
    data sheet
no data
Positions in all rankings

Common positions MANLI GeForce RTX 3070 Gallardo (M2502) GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    545 place
  • Battlefield 5
    674 place
  • Shadow of the Tomb Raider
    739 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    457 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    380 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    605 place
  • 3DMark Benchmark
    678 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    213 place

Benchmarks

Performance tests GPU

Compare the scores of popular benchmarks MANLI GeForce RTX 3070 Gallardo (M2502) with other graphics cards to understand the real speed of the GPU when processing content.

Tests include working with floating point, creating 3D models, mining cryptocurrencies.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
79 fps (avg)
79 fps (avg)
78 fps (avg)
MANLI GeForce RTX 3070 Gallardo (M2502)
78 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
51 fps (avg)
51 fps (avg)
50 fps (avg)
MANLI GeForce RTX 3070 Gallardo (M2502)
50 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
62 MH/s
62 MH/s
61 MH/s
MANLI GeForce RTX 3070 Gallardo (M2502)
61 MH/s
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
162 MH/s
162 MH/s
161 MH/s
MANLI GeForce RTX 3070 Gallardo (M2502)
161 MH/s
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
Crypto-Mining Vertcoin Hashrate (MH/s)
VertCoin cryptocurrency can be mined on both Nvidia and AMD and is interesting because it mines perfectly on old GPUs like GTX1050, R9 290 and even GTX970
1.23 MH/s
1.23 MH/s
1.22 MH/s
MANLI GeForce RTX 3070 Gallardo (M2502)
1.22 MH/s

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with MANLI GeForce RTX 3070 Gallardo (M2502).

GIGABYTE AORUS GeForce RTX 2080 Ti 11G View
GALAX GeForce RTX 3070 (1-Click OC) View
INNO3D GeForce RTX 3070 Twin X2 OC View
INNO3D GeForce RTX 2080 Ti ICHILL BLACK View
Colorful iGame GeForce RTX 2080 Ti Neptune OC-V View
GALAX GeForce RTX 2080 Ti HOF 10th Anniversary Edition View
KFA2 GeForce RTX 3070 SG (1-Click OC) View

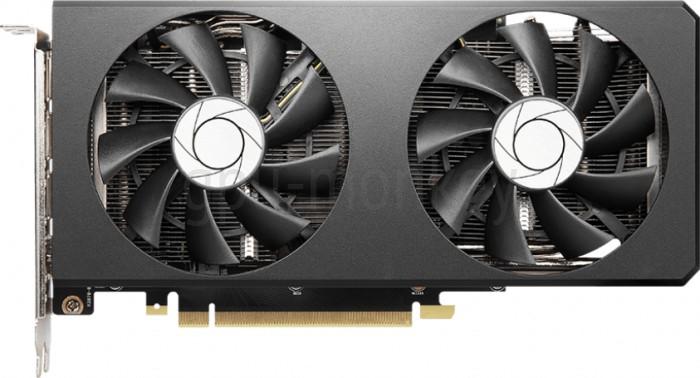

MSI GeForce RTX 3070 Twin Fan 8G OC View

*

Base Clock - this is the guaranteed speed that the manufacturer sets for the type of cooling and binning that the GPU comes out of the factory with.

Boost Clock - this is a theoretical minimum speed to which the video card can be overclocked considering the cooling and binning requirements.
