KFA2 GeForce RTX 2060 PLUS Gamer (1-Click OC)
Select video card 2
Overall score
star star star star star
Released
Q1/2019
KFA2 GeForce RTX 2060 PLUS Gamer (1-Click OC)

Graphics card KFA2 GeForce RTX 2060 PLUS Gamer (1-Click OC), specifications and benchmarks

2052 place in the overall ranking Graphics Cards!
It is a detailed review of KFA2 GeForce RTX 2060 PLUS Gamer (1-Click OC), the date of manufacture started in Q1/2019. Here are all specifications and the results of performance in the form of modern benchmark estimations. The base clock frequency is 1.365 GHz. The GPU supports GDDR6 with an 6 GB graphics memory. TDP is 160 W. We recommend comparing the GPU with other models on our website to determine the best performance.

Specifications

Technical data
General info

Key features of the graphics card KFA2 GeForce RTX 2060 PLUS Gamer (1-Click OC).

  • Based on
    NVIDIA GeForce RTX 2060
  • GPU Chip
    TU106
  • Execution units
    30
  • Shader
    1920
  • Render Output Units
    48
  • Texture Units
    120
no data
Memory settings

The characteristics of the video memory on board the graphics card. The higher the better.

  • Memory Size
    6 GB
  • Memory Type
    GDDR6
  • Memory Speed
    1.75 GHz
  • Memory Bandwith
    336 GB/s
  • Memory Interface
    192 bit
no data
Clock frequency

Video card clock speed and overclocking potential KFA2 GeForce RTX 2060 PLUS Gamer (1-Click OC).

  • Base Clock
    1.365 GHz
  • Boost Clock
    1.695 GHz+ 1 %
  • Avg (Game) Clock
    1.680 GHz
  • Overclocking
    Yes
* see below
Thermal Management

Connectors, the number of thermal watts emitted in normal mode and at overclocking.

  • TDP
    160 W
  • TDP (up)
    --
  • Tjunction max
    --
  • PCIe-Power
    1 x 8-Pin
no data
Cooler & Fans type

Cooling system parameters, connectors and fan types KFA2 GeForce RTX 2060 PLUS Gamer (1-Click OC).

  • Fan-Type
    Axial
  • Cooler-Type
    Air cooling
  • Fan 1
    3 x 80 mm
  • Noise (Idle)
    0 dB / Silent
  • Fan 2
    --
  • Noise (Load)
    --
no data
Interfaces

Connectivity and connections.

  • Max. Displays
    4
  • HDCP-Version
    2.2
  • HDMI Ports
    1x HDMI v2.0b
  • DP Ports
    1x DP v1.4a
  • DVI Ports
    1
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical data

Hardware capabilities and maintaining the API.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    Yes
  • LED
    Addressable LED
no data
Supported Video Codecs

Built-in support for video and image compression standards.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode
  • AV1
    No
no data
Dimensions
  • Length
    272 mm
  • Height
    127 mm
  • Width
    41 mm
  • Width (Slots)
    2 PCIe-Slots
  • Weight
    --
no data
More information
  • GPU Interface
    PCIe 3.0 x 16
  • Release date
    Q1/2019
  • Release price
    --
  • Structure size
    12 nm
  • Part-no
    26NRL7HP76DK
  • Documents
    data sheet
no data
Positions in all rankings

Common positions KFA2 GeForce RTX 2060 PLUS Gamer (1-Click OC) GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    2141 place
  • Battlefield 5
    2311 place
  • Shadow of the Tomb Raider
    2378 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    2045 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    2070 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    1615 place
  • 3DMark Benchmark
    1884 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    1412 place

Benchmarks

Performance tests GPU

Compare the scores of popular benchmarks KFA2 GeForce RTX 2060 PLUS Gamer (1-Click OC) with other graphics cards to understand the real speed of the GPU when processing content.

Tests include working with floating point, creating 3D models, mining cryptocurrencies.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
6.56
6.56
6.51
KFA2 GeForce RTX 2060 PLUS Gamer (1-Click OC)
6.51
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
7523
7523
7516
KFA2 GeForce RTX 2060 PLUS Gamer (1-Click OC)
7516
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
42 fps (avg)
42 fps (avg)
41 fps (avg)
KFA2 GeForce RTX 2060 PLUS Gamer (1-Click OC)
41 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
24 fps (avg)
24 fps (avg)
23 fps (avg)
KFA2 GeForce RTX 2060 PLUS Gamer (1-Click OC)
23 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
Crypto-Mining Vertcoin Hashrate (MH/s)
VertCoin cryptocurrency can be mined on both Nvidia and AMD and is interesting because it mines perfectly on old GPUs like GTX1050, R9 290 and even GTX970
0.46 MH/s
0.46 MH/s
0.45 MH/s
KFA2 GeForce RTX 2060 PLUS Gamer (1-Click OC)
0.45 MH/s

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with KFA2 GeForce RTX 2060 PLUS Gamer (1-Click OC).

Colorful GeForce RTX 2060 6G V2-V View
XFX Radeon RX 580 GTS Black Edition 8GB View

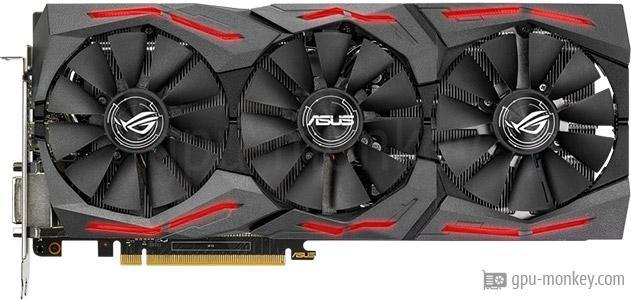

ASUS ROG Strix GeForce GTX 1070 OC edition View
XFX Radeon RX 580 GTR XXX Edition 8GB Crimson View
XFX Radeon RX 580 GTR-S XXX Edition 8GB Crimson View
ASUS Dual GeForce RTX 2060 View
ASUS Dual GeForce RTX 2060 EVO View
ZOTAC GAMING GeForce RTX 2060 Twin Fan View

*

Base Clock - this is the guaranteed speed that the manufacturer sets for the type of cooling and binning that the GPU comes out of the factory with.

Boost Clock - this is a theoretical minimum speed to which the video card can be overclocked considering the cooling and binning requirements.
