GALAX GeForce RTX 3070 Ti (1-Click OC)
Select video card 2
Overall score
star star star star star
Released
Q2/2021
GALAX GeForce RTX 3070 Ti (1-Click OC)

Graphics card GALAX GeForce RTX 3070 Ti (1-Click OC), specifications and benchmarks

415 place in the overall ranking Graphics Cards!
It is a detailed review of GALAX GeForce RTX 3070 Ti (1-Click OC), the date of manufacture started in Q2/2021. Here are all specifications and the results of performance in the form of modern benchmark estimations. The base clock frequency is 1.580 GHz. The GPU supports GDDR6X with an 8 GB graphics memory. TDP is 290 W. We recommend comparing the GPU with other models on our website to determine the best performance.

Specifications

Technical data
General info

Key features of the graphics card GALAX GeForce RTX 3070 Ti (1-Click OC).

  • Based on
    NVIDIA GeForce RTX 3070 Ti
  • GPU Chip
    GA104-400-A1
  • Execution units
    48
  • Shader
    6144
  • Render Output Units
    96
  • Texture Units
    192
no data
Memory settings

The characteristics of the video memory on board the graphics card. The higher the better.

  • Memory Size
    8 GB
  • Memory Type
    GDDR6X
  • Memory Speed
    1.188 GHz
  • Memory Bandwith
    608 GB/s
  • Memory Interface
    256 bit
no data
Clock frequency

Video card clock speed and overclocking potential GALAX GeForce RTX 3070 Ti (1-Click OC).

  • Base Clock
    1.580 GHz
  • Boost Clock
    1.785 GHz+ 1 %
  • Overclocking
    Yes
* see below
Thermal Management

Connectors, the number of thermal watts emitted in normal mode and at overclocking.

  • TDP
    290 W
  • TDP (up)
    --
  • Tjunction max
    93 °C
  • PCIe-Power
    2 x 8-Pin
no data
Cooler & Fans type

Cooling system parameters, connectors and fan types GALAX GeForce RTX 3070 Ti (1-Click OC).

  • Fan-Type
    Axial
  • Cooler-Type
    Air cooling
  • Fan 1
    2 x 102 mm
  • Noise (Idle)
    0 dB / Silent
  • Fan 2
    --
  • Noise (Load)
    --
no data
Interfaces

Connectivity and connections.

  • Max. Displays
    4
  • HDCP-Version
    2.3
  • HDMI Ports
    1x HDMI v2.1
  • DP Ports
    3x DP v1.4a
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical data

Hardware capabilities and maintaining the API.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    Yes
  • LED
    No LED lighting
no data
Supported Video Codecs

Built-in support for video and image compression standards.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode
  • AV1
    Decode
no data
Dimensions
  • Length
    254 mm
  • Height
    142 mm
  • Width
    54 mm
  • Width (Slots)
    3 PCIe-Slots
  • Weight
    --
no data
More information
  • GPU Interface
    PCIe 4.0 x 16
  • Release date
    Q2/2021
  • Release price
    --
  • Structure size
    8 nm
  • Part-no
    37ISM6MD4COC
  • Documents
    data sheet
no data
Positions in all rankings

Common positions GALAX GeForce RTX 3070 Ti (1-Click OC) GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    407 place
  • Battlefield 5
    443 place
  • Shadow of the Tomb Raider
    415 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    675 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    291 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    341 place
  • 3DMark Benchmark
    479 place

Benchmarks

Performance tests GPU

Compare the scores of popular benchmarks GALAX GeForce RTX 3070 Ti (1-Click OC) with other graphics cards to understand the real speed of the GPU when processing content.

Tests include working with floating point, creating 3D models, mining cryptocurrencies.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
85 fps (avg)
85 fps (avg)
84 fps (avg)
GALAX GeForce RTX 3070 Ti (1-Click OC)
84 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
70 fps (avg)
70 fps (avg)
69 fps (avg)
GALAX GeForce RTX 3070 Ti (1-Click OC)
69 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
59 MH/s
59 MH/s
58 MH/s
GALAX GeForce RTX 3070 Ti (1-Click OC)
58 MH/s
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
182 MH/s
182 MH/s
170 MH/s
GALAX GeForce RTX 3070 Ti (1-Click OC)
170 MH/s
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with GALAX GeForce RTX 3070 Ti (1-Click OC).

KFA2 GeForce RTX 3070 Ti (1-Click OC) View
ASUS TUF Gaming GeForce RTX 3070 OC View
MSI GeForce RTX 3070 Gaming Z Trio 8G View
GALAX GeForce RTX 3070 Ti EX (1-Click OC) View
ASUS KO GeForce RTX 3070 OC View
MSI GeForce RTX 3070 Suprim 8G View
GALAX GeForce RTX 3070 Ti EX White (1-Click OC) View

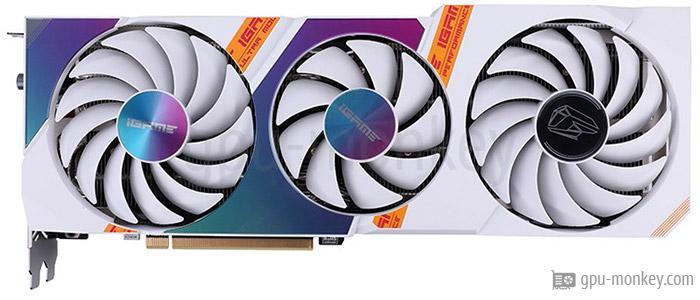

Colorful GeForce RTX 3070 Ti Ultra W OC 8G-V View

*

Base Clock - this is the guaranteed speed that the manufacturer sets for the type of cooling and binning that the GPU comes out of the factory with.

Boost Clock - this is a theoretical minimum speed to which the video card can be overclocked considering the cooling and binning requirements.
