EVGA GeForce GT 1030 DDR4

Graphics card EVGA GeForce GT 1030 DDR4, specifications and benchmarks

3028 place in the overall ranking Graphics Cards!
It is a detailed review of EVGA GeForce GT 1030 DDR4, the date of manufacture started in Q1/2018. Here are all specifications and the results of performance in the form of modern benchmark estimations. The base clock frequency is 1.189 GHz+ 3 %. The GPU supports DDR4 with an 2 GB graphics memory. TDP is 30 W+ 50 %. We recommend comparing the GPU with other models on our website to determine the best performance.

Specifications

Technical data
General info

Key features of the graphics card EVGA GeForce GT 1030 DDR4.

  • Based on
    NVIDIA GeForce GT 1030 (DDR4)
  • GPU Chip
    GP108-310-A1
  • Execution units
    3
  • Shader
    384
  • Render Output Units
    16
  • Texture Units
    24
no data
Memory settings

The characteristics of the video memory on board the graphics card. The higher the better.

  • Memory Size
    2 GB
  • Memory Type
    DDR4
  • Memory Speed
    1.05 GHz
  • Memory Bandwith
    17 GB/s
  • Memory Interface
    64 bit
no data
Clock frequency

Video card clock speed and overclocking potential EVGA GeForce GT 1030 DDR4.

  • Base Clock
    1.189 GHz+ 3 %
  • Boost Clock
    1.430 GHz+ 4 %
  • Overclocking
    Yes
* see below
Thermal Management

Connectors, the number of thermal watts emitted in normal mode and at overclocking.

  • TDP
    30 W+ 50 %
  • TDP (up)
    --
  • Tjunction max
    --
no data
Cooler & Fans type

Cooling system parameters, connectors and fan types EVGA GeForce GT 1030 DDR4.

  • Fan-Type
    --
  • Cooler-Type
    Passive
  • Fan 1
    --
  • Noise (Idle)
    0 dB / Silent
  • Fan 2
    --
  • Noise (Load)
    0 dB
no data
Interfaces

Connectivity and connections.

  • Max. Displays
    3
  • HDCP-Version
    2.2
  • HDMI Ports
    1x HDMI v2.0b
  • DP Ports
    --
  • DVI Ports
    1
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical data

Hardware capabilities and maintaining the API.

  • Max. resolution
    4096x2160
  • DirectX
    12_1
  • Raytracing
    No
  • DLSS / FSR
    No
  • LED
    No LED lighting
no data
Supported Video Codecs

Built-in support for video and image compression standards.

  • h264
    Decode
  • VP8
    No
  • h265 / HEVC
    Decode
  • VP9
    Decode
  • AV1
    No
no data
Dimensions
  • Length
    145 mm
  • Height
    69 mm
  • Width
    --
  • Width (Slots)
    2 PCIe-Slots
  • Weight
    --
no data
More information
  • GPU Interface
    PCIe 3.0 x 4
  • Release date
    Q1/2018
  • Release price
    --
  • Structure size
    14 nm
  • Part-no
    02G-P4-6232-KR
  • Documents
    data sheet
no data
Positions in all rankings

Common positions EVGA GeForce GT 1030 DDR4 GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    3101 place
  • Battlefield 5
    2989 place
  • Shadow of the Tomb Raider
    3033 place

Benchmarks

Performance tests GPU

Compare the scores of popular benchmarks EVGA GeForce GT 1030 DDR4 with other graphics cards to understand the real speed of the GPU when processing content.

Tests include working with floating point, creating 3D models, mining cryptocurrencies.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
8 fps (avg)
8 fps (avg)
1 fps (avg)
EVGA GeForce GT 1030 DDR4
1 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
6 fps (avg)
6 fps (avg)
2 fps (avg)
EVGA GeForce GT 1030 DDR4
2 fps (avg)

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with EVGA GeForce GT 1030 DDR4.

MSI GeForce GT 1030 AERO ITX 2GD4 OC View
GIGABYTE GeForce GT 1030 Low Profile D4 2G DDR4 View
MSI GeForce GT 1030 2G LP OC View
MSI GeForce GT 1030 2G LP OCV1 View

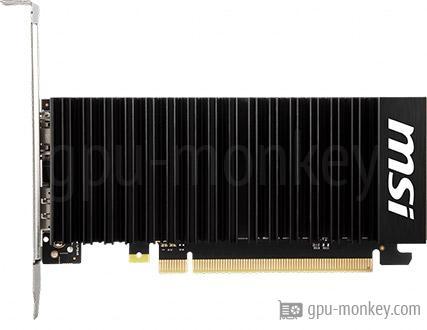

MSI GeForce GT 1030 2GHD4 LP OC View
ASUS GeForce GT 1030 silent DDR4 View
MSI GeForce GT 1030 2GD4 LP OC View
MSI GeForce GT 1030 AERO ITX 2GD4 OCV1 View

*

Base Clock - this is the guaranteed speed that the manufacturer sets for the type of cooling and binning that the GPU comes out of the factory with.

Boost Clock - this is a theoretical minimum speed to which the video card can be overclocked considering the cooling and binning requirements.
