ASUS Dual GeForce RTX 2080 SUPER OC Evo V2

Graphics card ASUS Dual GeForce RTX 2080 SUPER OC Evo V2, specifications and benchmarks

819 place in the overall ranking Graphics Cards!
It is a detailed review of ASUS Dual GeForce RTX 2080 SUPER OC Evo V2, the date of manufacture started in Q3/2019. Here are all specifications and the results of performance in the form of modern benchmark estimations. The base clock frequency is 1.650 GHz. The GPU supports GDDR6 with an 8 GB graphics memory. TDP is 250 W. We recommend comparing the GPU with other models on our website to determine the best performance.

Specifications

Technical data
GPU
  • Based on
    NVIDIA GeForce RTX 2080 SUPER
  • Execution Units
    48
  • GPU Chip
    TU104
  • Render Output Units
    64
  • Shader
    3072
  • Texture Units
    192
Memory
  • Memory Bandwidth
    496 GB/s
  • Memory Bus
    256 bit
  • Memory Size
    8 GB
  • Memory Speed (legacy frequency label)
    1938 MHz
  • Memory Type
    GDDR6
Clock Speeds
  • Base Clock
    1650 MHz
  • Boost Clock
    1860 MHz + 2%
  • Game Clock
    1830 MHz
  • Overclocking
    Yes
Thermal Design
  • Maximum Junction Temperature
    —
  • TDP
    250 W
  • TDP (up)
    280 W
Cooler & Fans
  • Cooler-Type
    Air cooling
  • Fan-Type
    Axial
  • Fan 1
    2 x 90 mm
  • Fan 2
    —
  • Noise (Idle)
    0 dB / Silent
  • Noise (Load)
    39 dB
Connectivity
  • DisplayPort Ports
    3 × DisplayPort 1.4
  • DVI Ports
    —
  • HDCP Version
    2.2
  • HDMI Ports
    1 × HDMI 2.0b
  • Max. Displays
    4
  • PCIe Interface
    PCIe 3.0 x16
  • Power Connectors
    2 x 8-Pin
  • USB-C Ports
    —
  • VGA Ports
    —
Featureset
  • DirectX
    12_2
  • DLSS / FSR
    Yes
  • LED
    No LED lighting
  • Max. resolution
    7680 × 4320
  • Raytracing
    Yes
Supported Video Codecs
  • AV1
    No
  • h264
    Decode / Encode
  • h265 / HEVC
    Decode / Encode
  • VP8
    Decode
  • VP9
    Decode
Dimensions
  • Height
    118 mm
  • Length
    267 mm
  • Slot Size
    3 PCIe-Slots
  • Weight
    —
  • Width
    58 mm
Additional data
  • Documents
    data sheet
  • Launch Price (historical)
    899 $
  • Part Number
    DUAL-RTX2080S-O8G-EVO-V2
  • Process Technology
    12 nm
  • Release date
    Q3/2019
Positions in all rankings

Common positions ASUS Dual GeForce RTX 2080 SUPER OC Evo V2 GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    1162 place
  • 3DMark Benchmark
    898 place
  • Battlefield 5
    813 place
  • Shadow of the Tomb Raider
    836 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    1157 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    1190 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    677 place

Benchmarks

Performance tests GPU

Compare the scores of popular benchmarks ASUS Dual GeForce RTX 2080 SUPER OC Evo V2 with other graphics cards to understand the real speed of the GPU when processing content.

Tests include working with floating point, creating 3D models, mining cryptocurrencies.

These are saved results from the earlier catalog. Measurement dates and test configurations were not recorded. Models with no comparable results are omitted.

Recent models: test results with identified primary sources — Game frame rates

Archive: saved catalog source links. The original measurement method and test conditions have not been verified; current source pages may differ from the imported content. ASUS Dual GeForce RTX 2080 SUPER OC Evo V2

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming

Higher values are better in this metric.

11.43 TFLOPS
ASUS Dual GeForce RTX 2080 SUPER OC Evo V2
11.61 TFLOPS
11.52 TFLOPS
11.43 TFLOPS
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware

Higher values are better in this metric.

Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards

Higher values are better in this metric.

Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine

Higher values are better in this metric.

Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU

Higher values are better in this metric.

Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs

Higher values are better in this metric.

Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards

Higher values are better in this metric.

28 MH/s
ASUS Dual GeForce RTX 2080 SUPER OC Evo V2
29 MH/s
29 MH/s
28 MH/s

Synonyms

Nearby models in the composite benchmark index.

These are saved results from the earlier catalog. Measurement dates and test configurations were not recorded. Models with no comparable results are omitted. Index 0–100: equal-weight mean of each score relative to the best saved score among models with both tests. Tests: Battlefield 5 + Shadow of the Tomb Raider. This index does not predict performance in every workload.

Recent models: test results with identified primary sources — Game frame rates

ASUS ROG Strix GeForce RTX 2080 SUPER Advanced ASUS ROG Strix GeForce RTX 2080 SUPER Advanced View

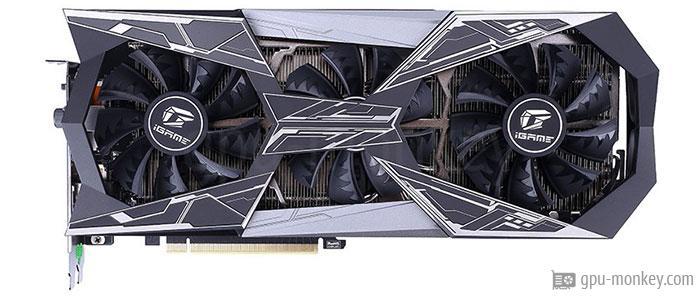

Colorful iGame GeForce RTX 2080 SUPER Vulcan X OC-V Colorful iGame GeForce RTX 2080 SUPER Vulcan X OC-V View
Gainward GeForce RTX 2080 SUPER Phantom GLH Gainward GeForce RTX 2080 SUPER Phantom GLH View
GALAX GeForce RTX 2080 SUPER EX Gamer GALAX GeForce RTX 2080 SUPER EX Gamer View
ASUS Dual GeForce RTX 2080 SUPER OC Evo ASUS Dual GeForce RTX 2080 SUPER OC Evo View
MSI GeForce RTX 3060 Ti Gaming 8G LHR MSI GeForce RTX 3060 Ti Gaming 8G LHR View
KFA2 GeForce RTX 3060 Ti EX White (1-Click OC) LHR KFA2 GeForce RTX 3060 Ti EX White (1-Click OC) LHR View
KFA2 GeForce RTX 3060 Ti EX (1-Click OC) LHR KFA2 GeForce RTX 3060 Ti EX (1-Click OC) LHR View

*

Base Clock is the base GPU frequency stated by the manufacturer for this model.

Boost Clock describes automatic frequency increases. Actual clock speed varies with workload, temperature and power limits; it is not a guarantee of manual overclocking.
