ASRock Radeon RX 6600 XT Challenger Pro 8GB OC
Select video card 2
Overall score
star star star star star
Released
Q3/2021
ASRock Radeon RX 6600 XT Challenger Pro 8GB OC

Graphics card ASRock Radeon RX 6600 XT Challenger Pro 8GB OC, specifications and benchmarks

1714 place in the overall ranking Graphics Cards!
It is a detailed review of ASRock Radeon RX 6600 XT Challenger Pro 8GB OC, the date of manufacture started in Q3/2021. Here are all specifications and the results of performance in the form of modern benchmark estimations. The base clock frequency is 2.033 GHz+ 3 %. The GPU supports GDDR6 with an 8 GB graphics memory. TDP is 160 W. We recommend comparing the GPU with other models on our website to determine the best performance.

Specifications

Technical data
General info

Key features of the graphics card ASRock Radeon RX 6600 XT Challenger Pro 8GB OC.

  • Based on
    AMD Radeon RX 6600 XT
  • GPU Chip
    Navi 23 XT
  • Execution units
    32
  • Shader
    2048
  • Render Output Units
    64
  • Texture Units
    128
no data
Memory settings

The characteristics of the video memory on board the graphics card. The higher the better.

  • Memory Size
    8 GB
  • Memory Type
    GDDR6
  • Memory Speed
    2 GHz
  • Memory Bandwith
    256 GB/s
  • Memory Interface
    128 bit
no data
Clock frequency

Video card clock speed and overclocking potential ASRock Radeon RX 6600 XT Challenger Pro 8GB OC.

  • Base Clock
    2.033 GHz+ 3 %
  • Boost Clock
    2.602 GHz+ 1 %
  • Avg (Game) Clock
    2.413 GHz+ 2 %
  • Overclocking
    Yes
* see below
Thermal Management

Connectors, the number of thermal watts emitted in normal mode and at overclocking.

  • TDP
    160 W
  • TDP (up)
    --
  • Tjunction max
    110 °C
  • PCIe-Power
    1 x 8-Pin
no data
Cooler & Fans type

Cooling system parameters, connectors and fan types ASRock Radeon RX 6600 XT Challenger Pro 8GB OC.

  • Fan-Type
    Axial
  • Cooler-Type
    Air cooling
  • Fan 1
    3 x 90 mm
  • Noise (Idle)
    0 dB / Silent
  • Fan 2
    --
  • Noise (Load)
    --
no data
Interfaces

Connectivity and connections.

  • Max. Displays
    4
  • HDCP-Version
    2.3
  • HDMI Ports
    1x HDMI v2.1
  • DP Ports
    3x DP v1.4
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical data

Hardware capabilities and maintaining the API.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    No
  • LED
    Addressable LED
no data
Supported Video Codecs

Built-in support for video and image compression standards.

  • h264
    Decode / Encode
  • VP8
    Decode / Encode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode / Encode
  • AV1
    Decode
no data
Dimensions
  • Length
    303 mm
  • Height
    131 mm
  • Width
    45 mm
  • Width (Slots)
    3 PCIe-Slots
  • Weight
    834 g
no data
More information
  • GPU Interface
    PCIe 4.0 x 8
  • Release date
    Q3/2021
  • Release price
    --
  • Structure size
    7 nm
  • Part-no
    RX6600XT CLP 8GO
  • Documents
    data sheet
no data
Positions in all rankings

Common positions ASRock Radeon RX 6600 XT Challenger Pro 8GB OC GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    1297 place
  • Battlefield 5
    1226 place
  • Shadow of the Tomb Raider
    1428 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    1871 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    1965 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    1847 place
  • 3DMark Benchmark
    1452 place

Benchmarks

Performance tests GPU

Compare the scores of popular benchmarks ASRock Radeon RX 6600 XT Challenger Pro 8GB OC with other graphics cards to understand the real speed of the GPU when processing content.

Tests include working with floating point, creating 3D models, mining cryptocurrencies.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
61 fps (avg)
61 fps (avg)
60 fps (avg)
ASRock Radeon RX 6600 XT Challenger Pro 8GB OC
60 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
39 fps (avg)
39 fps (avg)
38 fps (avg)
ASRock Radeon RX 6600 XT Challenger Pro 8GB OC
38 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
36 MH/s
MANLI GeForce RTX 3060 LHR (M2500+N630-00)
36 MH/s
32 MH/s
ASRock Radeon RX 6600 XT Challenger Pro 8GB OC
32 MH/s
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
18 MH/s
18 MH/s
17 MH/s
ASRock Radeon RX 6600 XT Challenger Pro 8GB OC
17 MH/s

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with ASRock Radeon RX 6600 XT Challenger Pro 8GB OC.

EVGA GeForce GTX 1080 HYBRID GAMING View
MSI Radeon RX 6600 XT MECH 2X 8G OC View
EVGA GeForce GTX 1080 SC GAMING ACX+LED View
MSI Radeon RX 6600 XT MECH 2X 8G OCV1 View
GIGABYTE GeForce RTX 2060 SUPER GAMING OC 8G View

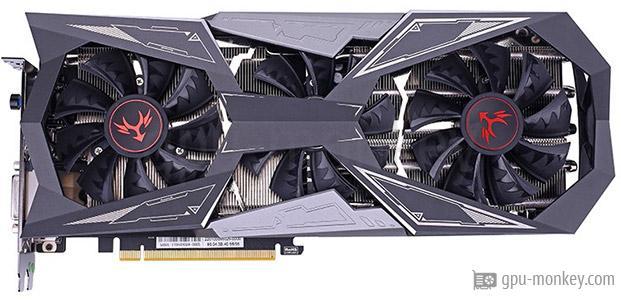

Colorful iGame GeForce GTX 1080 Vulcan X-V View
EVGA GeForce GTX 1080 SC GAMING View
EVGA GeForce GTX 1080 SC GAMING (Radial) View

*

Base Clock - this is the guaranteed speed that the manufacturer sets for the type of cooling and binning that the GPU comes out of the factory with.

Boost Clock - this is a theoretical minimum speed to which the video card can be overclocked considering the cooling and binning requirements.
