AMD Radeon RX 9060 — Specifications

Specifications Benchmarks Synonyms

Specifications

Technical data

Specifications checked against the linked manufacturer source on 2026-09-30.

Official specifications

GPU

AI Accelerators
56
Based on
AMD Radeon RX 9060
Compute Units
28
Execution Units
28
Ray Accelerators
28
Render Output Units
64
Shader
1792

Memory

Infinity Cache
32 MB
Memory Bandwidth
288 GB/s
Memory Bus
128 bit
Memory Data Rate
18 Gbps
Memory Size
8 GB
Memory Type
GDDR6

Clock Speeds

Boost Clock
2990 MHz
Game Clock
2400 MHz

Thermal Design

System Power Supply
450 W (System power requirement)
Typical Board Power
132 W

Connectivity

DisplayPort Version
2.1a
HDMI Version
2.1b
PCIe Interface
PCIe 5.0 x16
Power Connectors
1x8-Pin

Additional data

Official source
https://www.amd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060.html
Verified on
2026-09-30

Positions in all rankings

Common positions AMD Radeon RX 9060 GPU in popular benchmarks, for comparison with other models.

No data

Manufacturer versions

Board specifications and benchmark results are specific to each version.

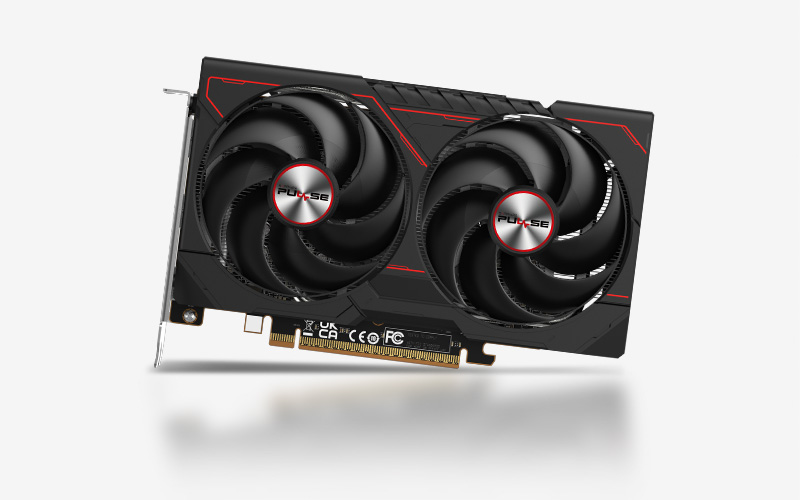

SAPPHIRE PULSE Radeon RX 9060 OC 8GB

Sapphire · 8 GB

All models based on this GPU

Benchmarks

Performance tests GPU

No benchmark results are available yet. This model is listed with specifications only.

These are saved results from the earlier catalog. Measurement dates and test configurations were not recorded. Models with no comparable results are omitted.

Comparable benchmark results are required to suggest performance alternatives.

Base Clock is the base GPU frequency stated by the manufacturer for this model.

Boost Clock describes automatic frequency increases. Actual clock speed varies with workload, temperature and power limits; it is not a guarantee of manual overclocking.
