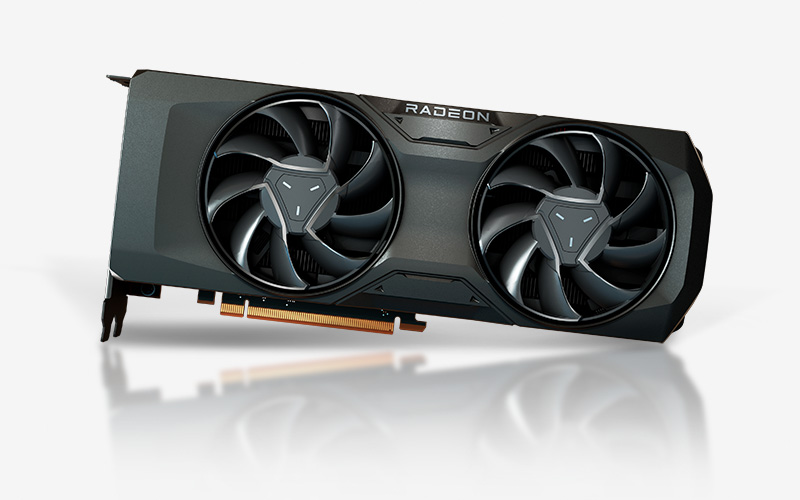

AMD Radeon RX 7800 XT

Graphics card AMD Radeon RX 7800 XT, specifications and benchmarks

It is a detailed review of AMD Radeon RX 7800 XT, the date of manufacture started in 2023. Here are all specifications and the results of performance in the form of modern benchmark estimations. The base clock frequency is 1.800 GHz. The GPU supports GDDR6 with an 16 GB graphics memory. TDP is 300 W+ 20 %. We recommend comparing the GPU with other models on our website to determine the best performance.

Specifications

Technical data
GPU
  • AI Accelerators
    120
  • Architecture
    RDNA 3
  • Based on
    AMD Radeon RX 7800 XT
  • Compute Units
    60
  • Execution Units
    60
  • GPU Chip
    Navi 32
  • Ray Accelerators
    60
  • Render Output Units
    96
  • RT Cores
    120
  • Shader
    3840
  • Streaming Multiprocessors
    60
  • Texture Units
    480
Memory
  • Infinity Cache
    64 MB
  • Memory Bandwidth
    624 GB/s
  • Memory Bus
    256 bit
  • Memory Clock
    2250 MHz
  • Memory Data Rate
    19.5 Gbps
  • Memory Size
    16 GB
  • Memory Type
    GDDR6
Clock Speeds
  • Base Clock
    1800 MHz
  • Boost Clock
    2430 MHz
  • Game Clock
    2124 MHz
  • Overclocking
    Yes
Thermal Design
  • Maximum Junction Temperature
    —
  • System Power Supply
    700 W (System power requirement)
  • TDP
    300 W+ 20 %
  • TDP (up)
    —
  • Typical Board Power
    263 W
Cooler & Fans
  • Cooler-Type
    Air cooling
  • Fan-Type
    Axial
  • Fan 1
    —
  • Fan 2
    —
  • Noise (Idle)
    0 dB / Silent
  • Noise (Load)
    —
Connectivity
  • DisplayPort Ports
    3 × DisplayPort 2.1
  • DVI Ports
    —
  • HDCP Version
    2.3
  • HDMI Ports
    1 × HDMI 2.1a
  • HDMI Version
    2.1
  • Max. Displays
    4
  • PCIe Interface
    PCIe 4.0 x16
  • Power Connectors
    2x8-Pin
  • USB-C Ports
    —
  • VGA Ports
    —
Featureset
  • DirectX
    12_2 (Ultimate)
  • DLSS / FSR
    Yes
  • LED
    No LED lighting
  • Max. resolution
    7680 × 4320
  • Raytracing
    Yes
Supported Video Codecs
  • AV1
    Decode / Encode
  • h264
    Decode / Encode
  • h265 / HEVC
    Decode / Encode
  • VP8
    Decode / Encode
  • VP9
    Decode / Encode
Dimensions
  • Height
    —
  • Length
    —
  • Slot Size
    —
  • Weight
    —
  • Width
    —
Additional data
  • Documents
    —
  • Launch Price (historical)
    799 $
  • Part Number
    —
  • Process Technology
    5 nm
  • Release date
    2023
  • Verification scope
    Explicit manufacturer fields refreshed; other original historical fields retained, not all reverified. Partial composite conflicts are preserved.
Positions in all rankings

Common positions AMD Radeon RX 7800 XT GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    68 place

Manufacturer versions

Board specifications and benchmark results are specific to each version.

All models based on this GPU

Blender Open Data

Official median of community submissions; higher is better. Blender versions, operating systems and compute backends remain separate.

Snapshot date is the retrieval date, not the measurement date. Individual dates, RAM, drivers and power limits are unknown. This aggregates different user systems; it is not a test of a specific partner board and is excluded from the legacy composite index.

Benchmarks

Performance tests GPU

Compare the scores of popular benchmarks AMD Radeon RX 7800 XT with other graphics cards to understand the real speed of the GPU when processing content.

Tests include working with floating point, creating 3D models, mining cryptocurrencies.

These are saved results from the earlier catalog. Measurement dates and test configurations were not recorded. Models with no comparable results are omitted.

Recent models: test results with identified primary sources — Game frame rates

Archived results. The original measurement method and test conditions have not been verified.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming

Higher values are better in this metric.

37.67 TFLOPS
AMD Radeon RX 7800 XT

Comparable benchmark results are required to suggest performance alternatives.

*

Base Clock is the base GPU frequency stated by the manufacturer for this model.

Boost Clock describes automatic frequency increases. Actual clock speed varies with workload, temperature and power limits; it is not a guarantee of manual overclocking.
