MSI GeForce GT 1030 2GHD4 LP OC

グラフィックカード MSI GeForce GT 1030 2GHD4 LP OC, 仕様とベンチマーク

2999 総合ランキング1位 グラフィックスカード (GPU)!
製造開始日がQ1/2018のMSI GeForce GT 1030 2GHD4 LP OCの詳細レビューです。ここでは、すべての仕様と、最新のベンチマークによる推定性能の結果を紹介します。ベースクロック周波数は1.189 GHz+ 3 %です。GPUはDDR4をサポートし、2 GBのグラフィックメモリを搭載しています。TDPは30 W+ 50 %です。GPUの性能については、弊社ホームページの他モデルと比較されることをお勧めします。

仕様

技術データ
GPU
  • に基づいています。
    NVIDIA GeForce GT 1030 (DDR4)
  • Execution Units
    3
  • GPUチップ
    GP108-310-A1
  • レンダリング出力単位
    16
  • シェーダー
    384
  • テクスチャユニット
    24
メモリ
  • Memory Bandwidth
    17 GB/s
  • Memory Bus
    64 bit
  • メモリサイズ
    2 GB
  • Memory Speed (legacy frequency label)
    1050 MHz
  • メモリータイプ
    DDR4
クロック周波数
  • 基本周波数
    1189 MHz + 3%
  • 最大周波数
    1430 MHz + 4%
  • Game Clock
    —
  • オーバークロッキング
    はい
エネルギー消費量
  • Maximum Junction Temperature
    —
  • TDP
    30 W+ 50 %
  • TDP (up)
    —
冷却
  • クーラータイプ
    Passive
  • ファンタイプ
    —
  • ファン1
    —
  • ファン2
    —
  • Noise (Idle)
    0 dB / Silent
  • Noise (Load)
    0 dB
コネクティビティ
  • DisplayPort Ports
    1 × DisplayPort 1.4a
  • DVIポート
    —
  • HDCP Version
    2.2
  • HDMI端子
    1 × HDMI 2.0b
  • Max. 表示数
    3
  • PCIe Interface
    PCIe 3.0 x4
  • Power Connectors
    —
  • USB-C Ports
    —
  • VGA Ports
    —
フィーチャーセット
  • DirectX
    12_1
  • DLSS / FSR
    いいえ
  • LED
    No LED lighting
  • 最大解像度
    4096 × 2160
  • レイトレーシング
    いいえ
対応するビデオコーデック
  • AV1
    いいえ
  • h264
    Decode
  • h265 / HEVC
    Decode
  • VP8
    いいえ
  • VP9
    Decode
外形寸法図
  • 高さ
    69 mm
  • 長さ
    150 mm
  • Slot Size
    2 PCIe-Slots
  • Weight
    304 g
  • Width
    38 mm
追加データ
  • スペック
    data sheet
  • Launch Price (historical)
    —
  • Part Number
    —
  • Process Technology
    14 nm
  • 発売日
    Q1/2018
全ランキングでの順位

共通ポジション MSI GeForce GT 1030 2GHD4 LP OC 他機種との比較のため、一般的なベンチマークでGPUを使用。.

  • FP32 Performance (Single-precision TFLOPS)
    3169 place
  • Battlefield 5
    3003 place
  • Shadow of the Tomb Raider
    3037 place

ベンチマーク

性能試験 GPU

一般的なベンチマークのスコアを比較する MSI GeForce GT 1030 2GHD4 LP OC 他のグラフィックスカードとの比較により、コンテンツ処理時のGPUの実速度を把握することができます.

テスト内容は、浮動小数点演算、3Dモデルの作成、暗号通貨の採掘などです.

These are saved results from the earlier catalog. Measurement dates and test configurations were not recorded. Models with no comparable results are omitted.

Recent models: test results with identified primary sources — Game frame rates

Archive: saved catalog source links. The original measurement method and test conditions have not been verified; current source pages may differ from the imported content. MSI GeForce GT 1030 2GHD4 LP OC

FP32 Performance (Single-precision TFLOPS)
ベンチマークFP32は、3Dゲームに必要なGPUの32ビット浮動小数点演算です.

Higher values are better in this metric.

1.1 TFLOPS
MSI GeForce GT 1030 2GHD4 LP OC
1.13 TFLOPS
1.13 TFLOPS
1.1 TFLOPS
Battlefield 5
バトルフィールド5」はリアルなゲームであり、ベンチマークを内蔵しているので、グラフィックカードのテストとして非常に適している.

Higher values are better in this metric.

Shadow of the Tomb Raider
シャドウ オブ ザ トゥームレイダー』には、Crystal Dynamics Foundation製エンジンをベースにしたベンチマークが内蔵されています.

Higher values are better in this metric.

同義語

Nearby models in the composite benchmark index.

These are saved results from the earlier catalog. Measurement dates and test configurations were not recorded. Models with no comparable results are omitted. Index 0–100: equal-weight mean of each score relative to the best saved score among models with both tests. Tests: Battlefield 5 + Shadow of the Tomb Raider. This index does not predict performance in every workload.

Recent models: test results with identified primary sources — Game frame rates

MSI GeForce GT 1030 AERO ITX 2GD4 OC MSI GeForce GT 1030 AERO ITX 2GD4 OC 表示
MSI GeForce GT 1030 AERO ITX 2GD4 OCV1 MSI GeForce GT 1030 AERO ITX 2GD4 OCV1 表示
ASUS GeForce GT 1030 silent DDR4 ASUS GeForce GT 1030 silent DDR4 表示
GIGABYTE GeForce GT 1030 Low Profile D4 2G DDR4 GIGABYTE GeForce GT 1030 Low Profile D4 2G DDR4 表示
MSI GeForce GT 1030 2GD4 LP OC MSI GeForce GT 1030 2GD4 LP OC 表示
EVGA GeForce GT 1030 DDR4 EVGA GeForce GT 1030 DDR4 表示
ASUS Phoenix GeForce GT 1030 OC edition ASUS Phoenix GeForce GT 1030 OC edition 表示

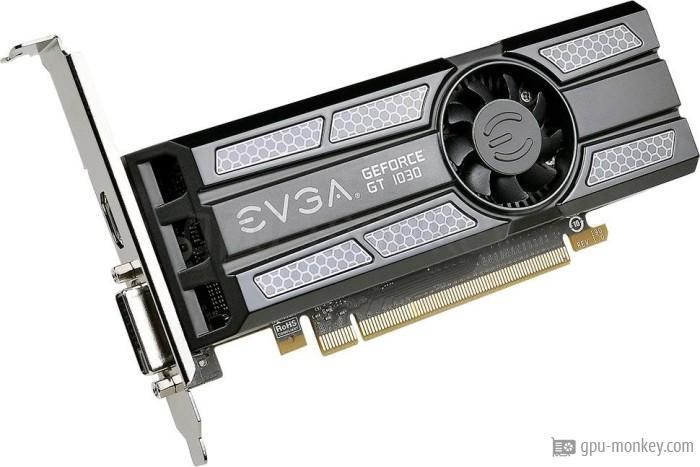

EVGA GeForce GT 1030 SC Single Slot EVGA GeForce GT 1030 SC Single Slot 表示

*

Base Clock is the base GPU frequency stated by the manufacturer for this model.

Boost Clock describes automatic frequency increases. Actual clock speed varies with workload, temperature and power limits; it is not a guarantee of manual overclocking.
