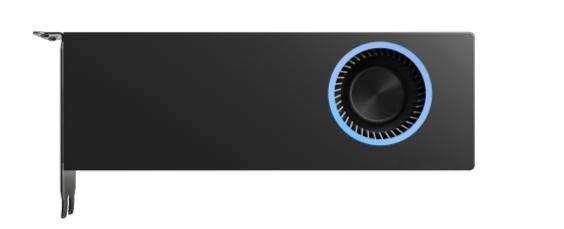

Intel Arc Pro B60 — Especificaciones

Especificaciones Puntos de referencia Sinónimos

Especificaciones

Datos técnicos

Specifications checked against the linked manufacturer source on 2026-09-30.

Official specifications

GPU

Arquitectura
Xe2
Basado en
Intel Arc Pro B60
Chip GPU
Intel Arc Pro B60
Ray Tracing Units
20
Xe Cores
20

Memoria

Memory Bandwidth
456 GB/s
Memory Bus
192 bit
Tamaño de la memoria
24 GB
Tipo de memoria
GDDR6

Frecuencia del reloj

Graphics Clock
2400 MHz
Graphics Clock - LP
2000 MHz

Consumo de energía

Total Board Power
200 W
Total Board Power - LP
120 - 200 W

Conectividad

Graphics Output
HDMI* 2.1, DP2.1 up to UHBR 13.5, DP2.1 up to UHBR 10
PCIe Interface
PCI Express 5.0 x8

Datos adicionales

Official source
https://www.intel.com/content/www/us/en/products/sku/243916/intel-arc-pro-b60-graphics/specifications.html
Release quarter
Q2/2025
Verified on
2026-09-30

Posiciones en todas las clasificaciones

Posiciones comunes Intel Arc Pro B60 GPU en benchmarks populares, para comparar con otros modelos.

No data

Manufacturer versions

Board specifications and benchmark results are specific to each version.

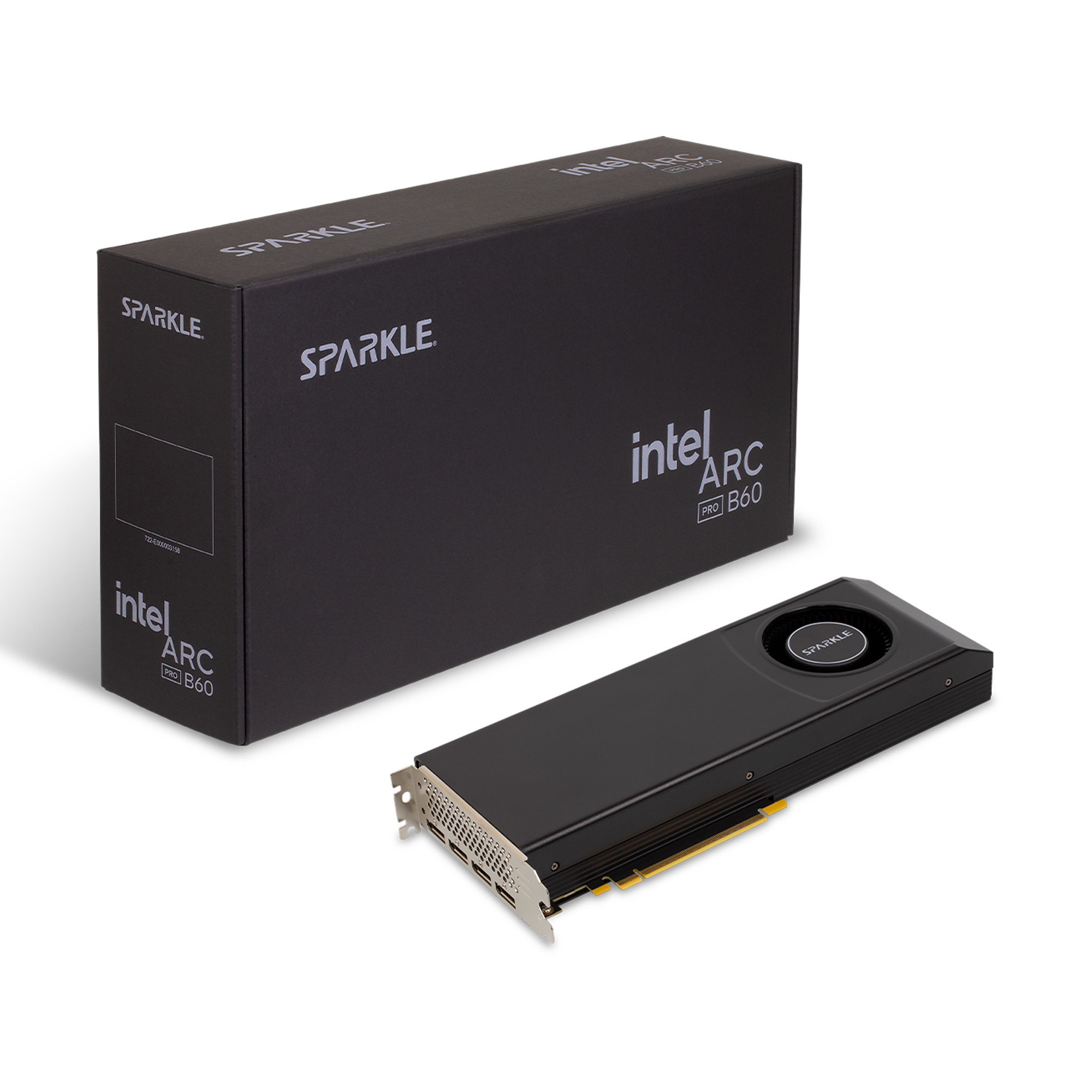

SPARKLE Intel Arc Pro B60 24GB Blower

Sparkle · 24 GB

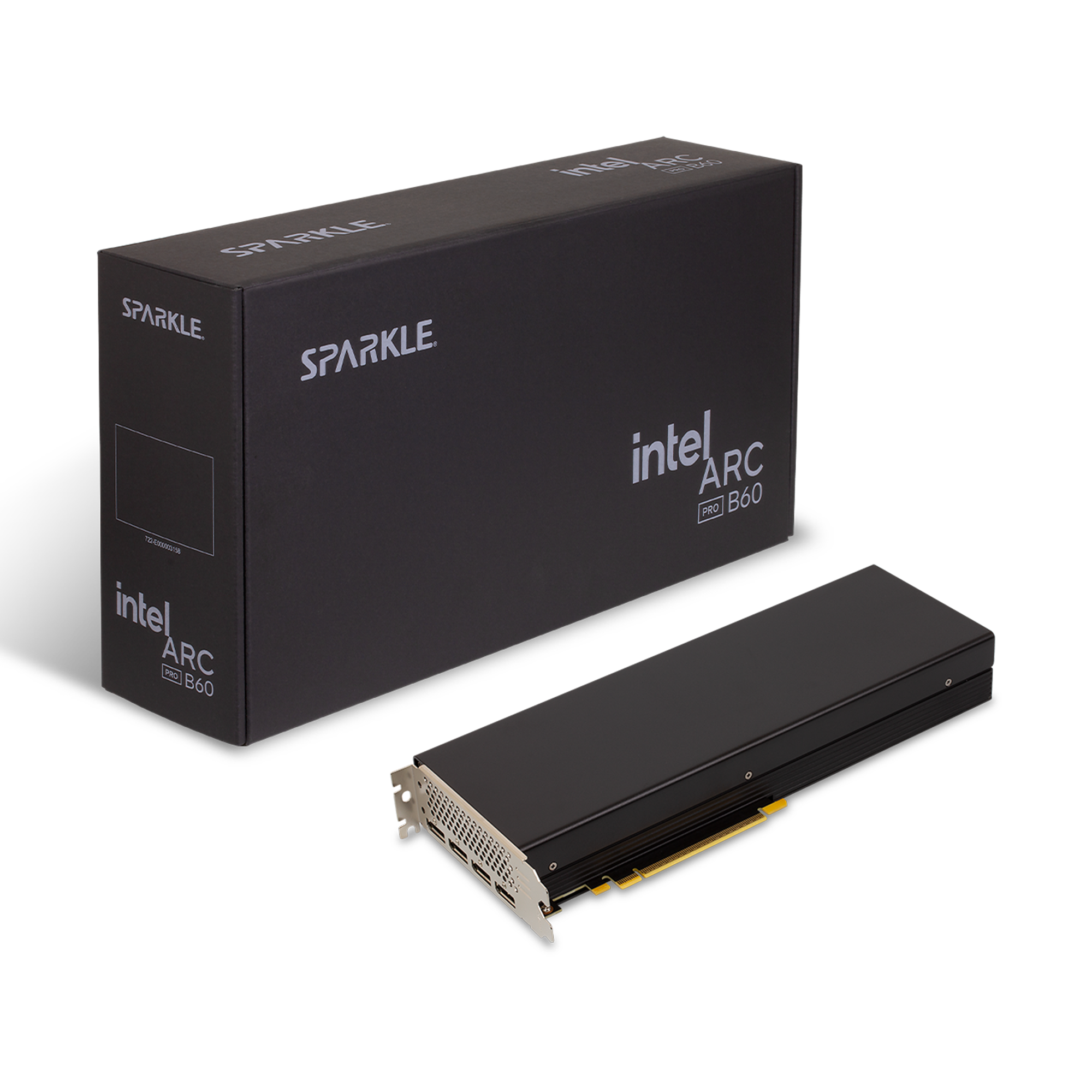

SPARKLE Intel Arc Pro B60 24GB Passive

Sparkle · 24 GB

All models based on this GPU

Puntos de referencia

Pruebas de rendimiento GPU

No benchmark results are available yet. This model is listed with specifications only.

These are saved results from the earlier catalog. Measurement dates and test configurations were not recorded. Models with no comparable results are omitted.

Comparable benchmark results are required to suggest performance alternatives.

Base Clock is the base GPU frequency stated by the manufacturer for this model.

Boost Clock describes automatic frequency increases. Actual clock speed varies with workload, temperature and power limits; it is not a guarantee of manual overclocking.
